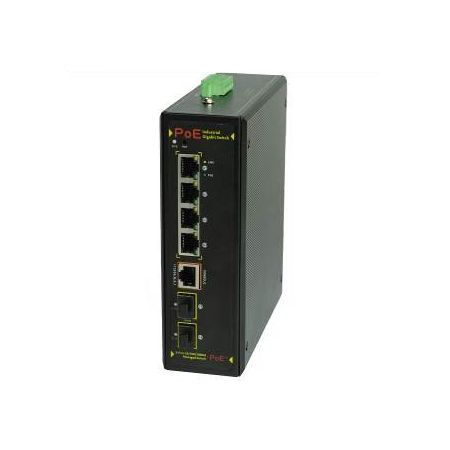

TP-SW4G-2SFP
Share :
Features
- Industrial Strength (-40C to +80C Operating Temperature)
- 4 PoE+ or 8 PoE+… and 2 fiber (SFP) Ports
- 10/100/1000 Gigabit Compatible
- Manageable via Console Port or IP
- Surge Protected Voltage and Ethernet Inputs
- Integrated DIN Rail Mount
Applications
- Outdoor Network Installations
- Cameras and Wireless Radios
- Factory networks
Description
The TP-SWxG-2SFP Power over Ethernet (PoE) 6 and 10 port Gigabit switches offered by Tycon® are fully automatic
high speed Layer 2+ Ethernet manageable switches. The 6 port model has 4 PoE + 2 SFP ports and the 10 port model
has 8 PoE + 2 SFP ports. The PoE ports are Mode A (pins +1,2 -3,6) type and are manageable via the user interface.
They can be set to PoE, PoE+ or OFF. Default is PoE+.
The switch features security protocols like SSH and SSL for secure access of the switch command interface. The
interface can be accessed via the serial console port or any of the Ethernet ports. The command interface can be
controlled via web browser, command line interface(CLI), TELNET, SSH or SNMP.
With L2+ features, the switches provide better manageability, security, QOS features and performance. VLAN, Port
Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, ARP Inspection, Storm Control, IP Source Guard,
Access Control Lists, PoE+ management are just some of the features available with this Industrial PoE Switch.
Spanning Tree, Jumbo Frames, Cable diagnostics, Ring Topology are also supported.
The switches are compliant with 802.3az Energy Efficient Ethernet task force specs. The switch automatically powers
down the port Ethernet drivers when a link is not active. Active mode is resumed without loss of any packets when the
switch detects the link is active. The switches also automatically adjust the signal strength depending on cable length
to save power.
The switches can be powered by 12VDC to 36VDC if no PoE output is required or powered from 48VDC to 57VDC if PoE is required.
The units are compatible with Category 5 or higher Ethernet cables with network distances up to 100m. The optical range for fiber ports is up to 20km. The RJ45 connectors are shielded and grounded to the case. The units have surge protection on all ports and are conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial applications.
