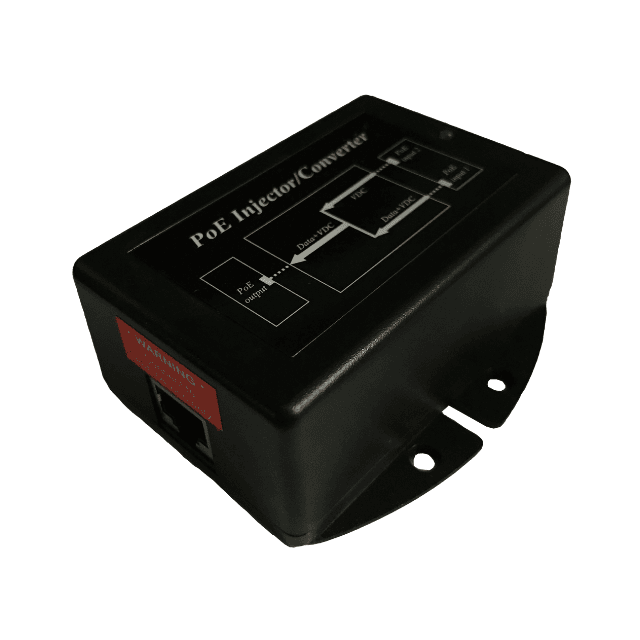

POE-CONV-2AF-AT

• Powering PoE+ (802.3at) devices using standard 802.3af PoE switches
• Powering high-power wireless radios like Ubiquiti airFiber using 60W 4-pair PoE
• Upgrading existing PoE infrastructure to support higher-power devices without replacing switches
• Deploying high-power IP cameras, PTZ cameras, or surveillance systems
• Enabling PoE-powered industrial or telecom equipment that requires 30W–60W
• Supporting long-distance or outdoor wireless bridging equipment that needs higher power than standard PoE

The POE-CONV-2AF-AT are unique Gigabit PoE converters which allow a customer to use existing PoE switches to

provide PoE+ functionality. They work by turning two 802.3af ports into one 802.3at port.

The POE-CONV-2AT-60 provide Gigabit PoE conversion, accepting two 802.3at inputs and providing a single 4 Pair

60W Passive PoE output which is compatible with High PoE devices like Ubiquiti airFiber™

There are two RJ45 socket for input and one RJ45 socket for the output. One input accepts Data and Power, the

second input accepts only Power. The design is isolated so input and output are isolated. The devices include

protections for short circuit and overload.

Note: If the inputs come from the same PoE switch then the output power is full power. If the inputs come from

different PoE sources, then the output power may be ½.
