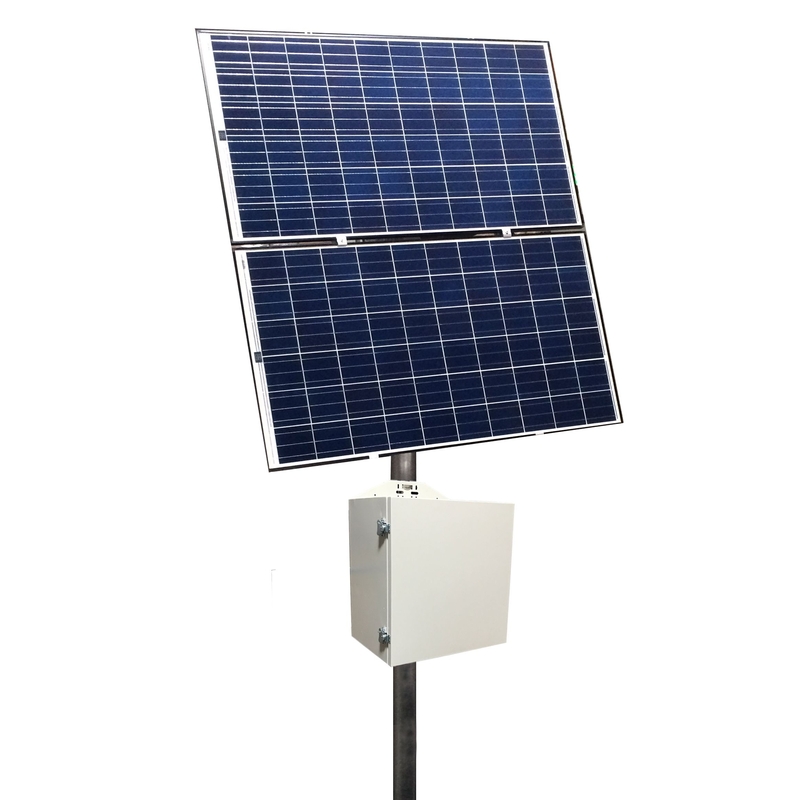

RPSTL48-400-720
Key Features:
Share :
Features
- Complete Remote Power Solutions for Off-Grid Operation.
- TPDIN-SC48-20 Remote Manageable MPPT Solar Controller with Gigabit PoE Switch
- Supports up to 157W continuous power with 6hrs peak sun.
- Weatherproof Outdoor Enclosures with up to 720Ah Battery
- Solar Mounts: Pole/Wall and Ground Mounts
- High Performance Sealed Lead Acid AGM Batteries
- Thermostatically Controlled Ventilation
Applications
- Wireless Base Stations
- Wireless Bridge and Repeaters
- Remote Lighting
- Off-Grid Power
- Surveillance Cameras
- Backup Power Systems
Description
The RemotePro® TPDIN-SC48-20 Series outdoor power systems are designed for applications that require a primary off-grid power source with an integrated 24/48V PoE Gigabit Switch to power up to 7 PoE devices. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.
The systems have a unique MPPT temperature compensated solar charge controller that provides 7 Gigabit PoE switch ports that are capable of 24V or 48V passive PoE or 802.3at PoE. The controller is remotely manageable over the network. It has user programmable controls to control each port based on parametric limits and provides programmable email alerts. The switch is VLAN compatible. The solar controllers turn off the load automatically if the battery voltage drops too low, to preserve battery life. The load turns on automatically once the battery voltage recovers.
The outdoor enclosures are powder coated steel pole/wall mount or diamond plate aluminum ground mounted type. They are hinged and gasket sealed with locking closures. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.
The high-quality solar panels have a 25-year power output guarantee and a +5W output tolerance.
Batteries are maintenance free, Non-Spillable, Valve Regulated, Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller. The ground mount systems include concrete anchors for securing the solar mount.
