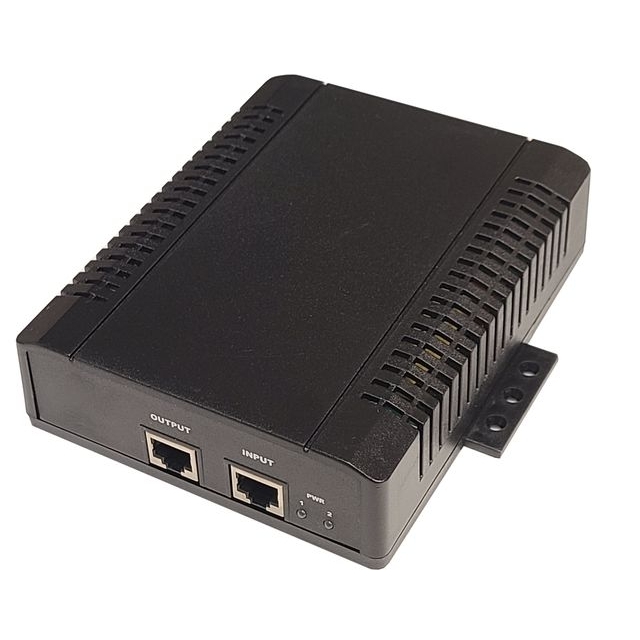

AC PoE Injector, 100-240VAC IN, 56V 100W 4Pair GigE Passive PoE OUT
Key Features:
• PoE Injector
• 112W Power
• Remotely Power thru CAT5/6 Cable
• Built-in Ethernet
• Built-in AC Surge Protection
Product Details
Features
- 112W Power
- Remotely Power Equipment thru CAT5 Cable up to 100m
- Built in Ethernet and AC Surge Protection
- Autoranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- 10/100/1000/5000Mb Compatible
- High Temperature Industrial Operation
- Compact size – Floor / Desktop / Wall Mount
Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
Description
The TP-POE-HP-56G Power over Ethernet Power Sources offered by Tycon Power® are quality 5 Gigabit
midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a
shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by
supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328
feet).
The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply
regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They
have total power output up to 112W.
