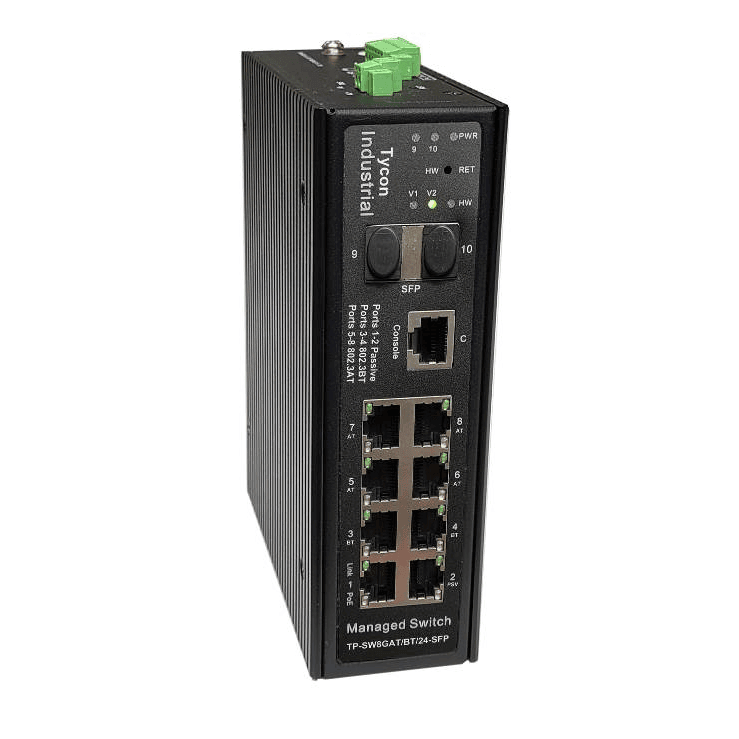

TP-SW8GAT/BT/24-SFP
Share :
Features
- Industrial Strength (-40C to +75C Operating Temperature)
- 10/100/1000 Gigabit Compatible Ethernet and 1G Fiber
- Ultimate Flexibility for Broadband and Security Integrators:
- Port 3-4 802.3bt 90W or 802.3at 30W
- Port 5-8 802.3at 30W
- Port 9-10 1Gb SFP Single/Multimode Fiber ports
- Manageable via Console Port or IP
- Surge Protected Voltage and Ethernet Inputs, Metal Shell
- Integrated DIN Rail Mount and Wall Mounts
Applications
- Outdoor Network Installations
- Cameras and Wireless Radios
- Factory networks
- PoE Lighting Applications
Description
The TP-SW8GAT/BT/24-SFP Power over Ethernet (PoE) 10 port Gigabit switches offered by Tycon® are fully
automatic high speed Layer 2+ Ethernet manageable switches. The switch has user configurable PoE ports to provide
802.3AT, 802.3BT and Passive 24V PoE which enables powering different devices from the same PoE Switch. It’s two
1Gb SFP fiber ports accept standard single mode or multimode fiber transceivers.
The PoE ports are manageable via the user interface. The maximum total power for all ports is an impressive 360W.
The switch features security protocols like SSH for secure access of the switch command interface. The
interface can be accessed via the serial console port or any of the Ethernet ports. The command
interface can be controlled via web browser, command line interface(CLI), TELNET, SSH or SNMP.
With L2+ features, the switches provide better manageability, security, QOS features and performance.
VLAN, Port Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, ARP Inspection, Storm
Control, IP Source Guard, Access Control Lists, PoE management are just some of the features
available with this Industrial PoE Switch.
Spanning Tree, Jumbo Frames, Ring Topology are also supported.
The switches feature two separate power inputs for primary and backup power. They require a 37VDC
to 57VDC input on the wire terminal connector which is capable of accepting up to 12AWG wire.
The units are compatible with Category 5 or higher Ethernet cables with network distances up to 100m.
The optical range for fiber ports is up to 120Km. The RJ45 connectors are shielded and grounded to the
case. The units have surge protection on all ports and are conformal coated for moisture protection.
They have a wide operating temperature range for outdoor and industrial applications.
