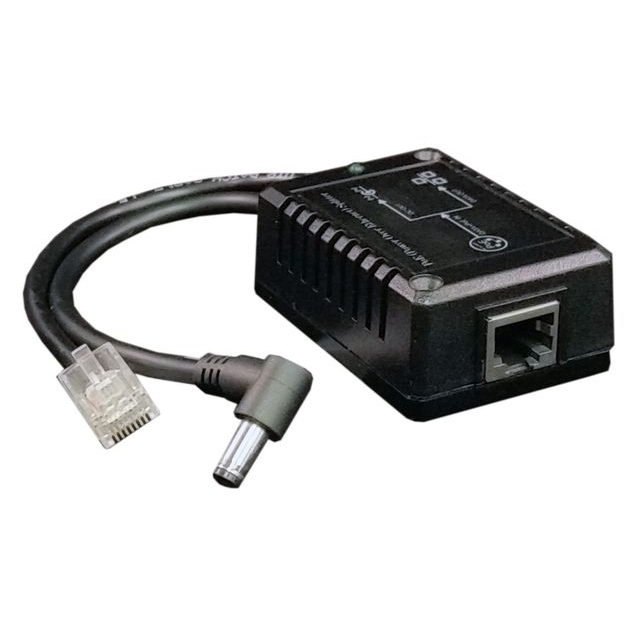

POE-MSPLT-4824
Share :
Features
- Very Compact Size
- Dual Output: 48V Passive PoE and 48V, 24V or 12VDC Output
- Converts an Active PoE Input to a DC output
- Output Power Up To 15W
- Short Circuit, Over Current Protection
Applications
- Power Non-PoE Devices from a PoE Network
- Deploy Remote IoT & Sensor Equipment
- Security & Surveillance Installations
- Wireless Networking
- Industrial and Commercial Control Systems
- Edge Devices in Distributed Networks
Description
The POE-MSPLT-48xxP-F is a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 48V or 24V or 12VDC outputs concurrently so two separate devices can be powered. The DC output is provided on a standard 5.5mm/2.1- 2.5mm barrel connector and the Data/PoE output is provided on standard RJ45 network connector, each on a 6” cable. The DC connector is compatible with Tycon passive PoE injectors like POE-INJ-1000-S for ease of integration. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network switches or PoE injectors. This device has no data output.
