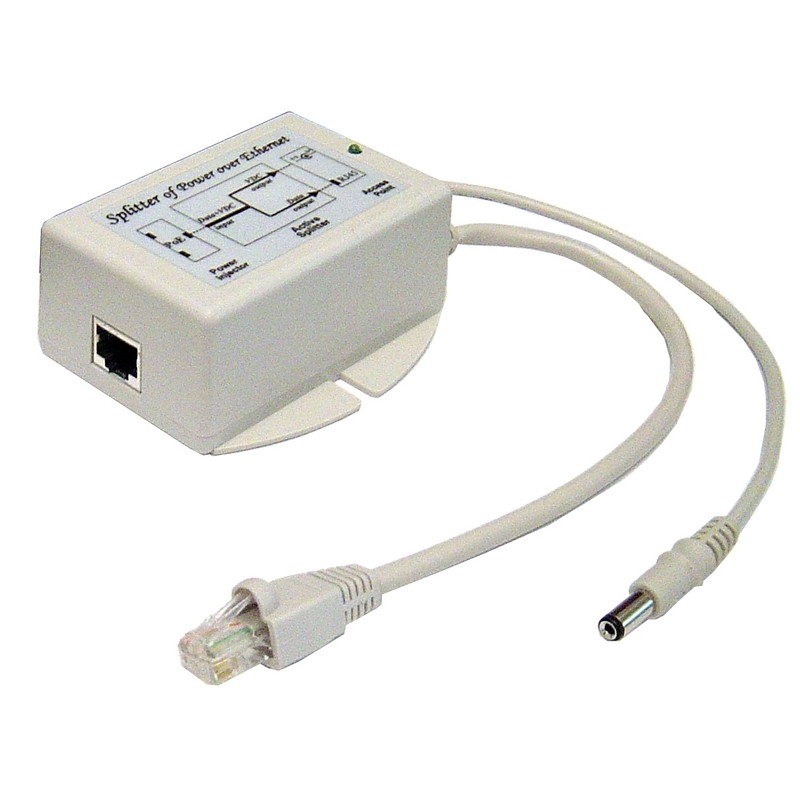

PoE Splitter, 802.3at PoE IN, 12VDC 25W OUT
$79.95
Customize
Store Qty
0 Features
PoE input to DC or AC output Outputs up to 80W High temperature operation Provides 12VDC or 5VDC 25W from standard 802.3at PoE input Short circuit, over current, and over voltage protection Applications
Power Non-PoE Devices from a PoE Network Deploy Remote IoT & Sensor Equipment Security & Surveillance Installations Wireless Networking Industrial and Commercial Control Systems Edge Devices in Distributed Networks Short Description
PoE Splitter, 802.3at PoE IN, 12VDC 25W OUT Long Description
The POE-SPLT Active splitters are unique Power over Ethernet adapters which converts a DC PoE input voltage to AC or DC regulated output voltages. The output is provided on a standard 5.5mm/2.1mm barrel connector on a 14” cable or in the case of the 80W unit, on a wire terminal connector. Ethernet speeds of 10/100MB and 10/100/1000MB are available. Inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage. Technical Links
Spec Sheet http://www.tyconsystems.com//specsheets/POE-SPLT_Active_Splitter_Volt_Converter_Spec_Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_Splitter_User-Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe
