PoE Splitter, 4Pair 802.3bt PoE IN, 24VAC 80W OUT, GigE
Key Features:
• PoE Splitter
• Converts 802.3at/bt Input
• 24VAC 80W output
• High Temperature Operation
• DIN Rail Mounting
$161.95
Share :
Product Details
Features
Converts 802.3at/bt PoE input to 24VAC 80W output
Runs cameras and other high power 24VAC devices from 48VDC PoE and battery systems
Short Circuit, Over Current and Over Voltage Protection
High Temperature Operation, DIN Rail Mounting
Applications
Power Non-PoE Devices from a PoE Network
Deploy Remote IoT & Sensor Equipment
Security & Surveillance Installations
Wireless Networking
Industrial and Commercial Control Systems
Edge Devices in Distributed Networks
Description

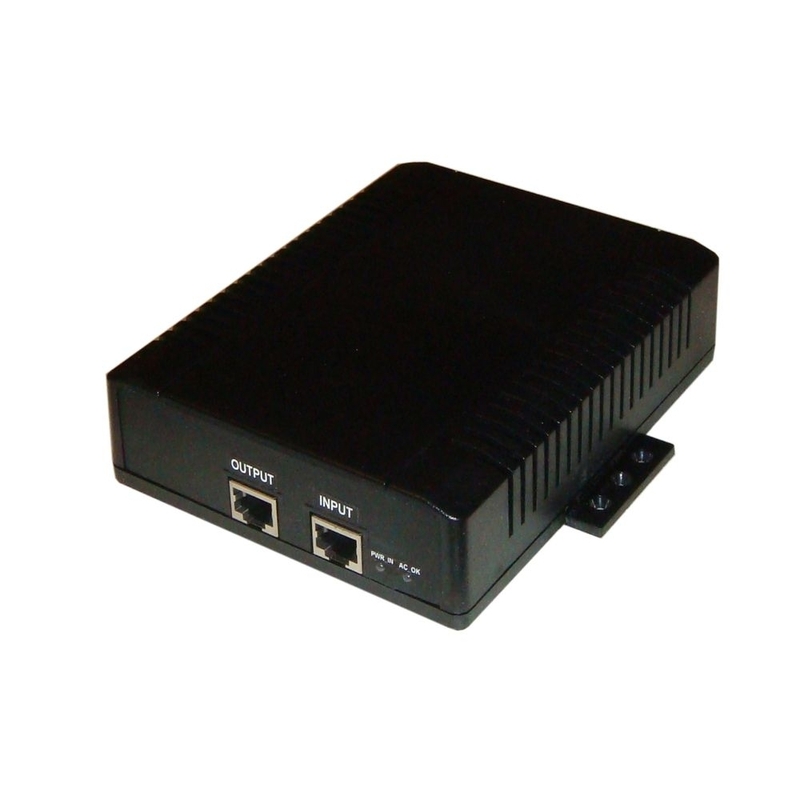

The POE-SPLT-4824AC-GBT Active splitters are unique Power over Ethernet adapters which convert a DC PoE input voltage to regulated 24VAC output. The output is provided on a wire terminal connector which accepts up to 12AWG wire. Compatible with Gigabit Ethernet, inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage. Requires a 4pair PoE input or output can only be 40W. The LED’s indicate which pairs are powered. A flashing LED indicates only 2 pairs powered.
