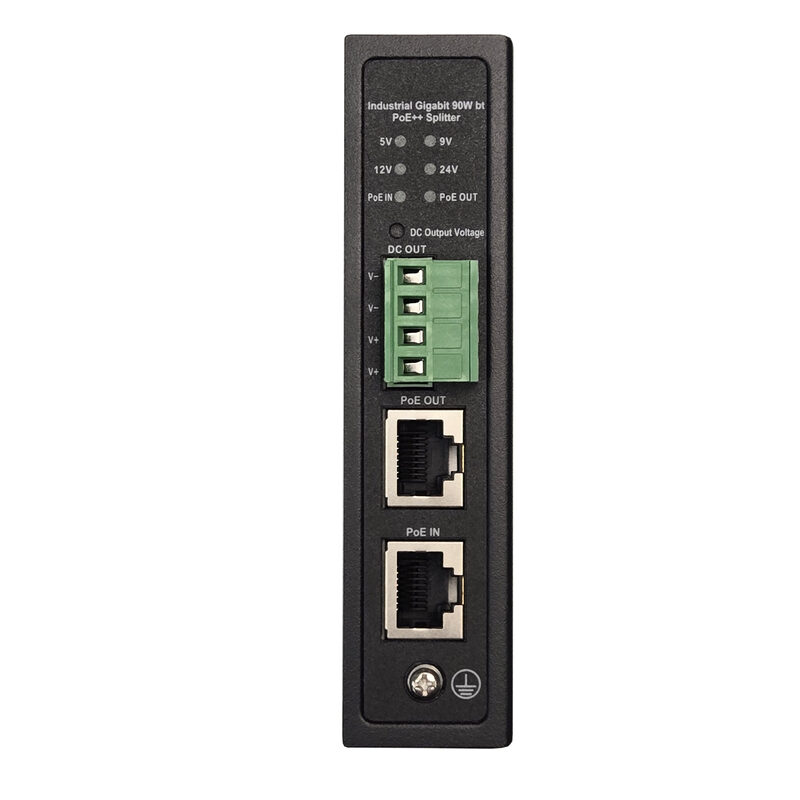

PoE Splitter, 802.3at/bt/48V Passive PoE IN, Selectable 5V/9V/12V/24V 802.3bt PoE OUT, 72W Max, GigE
$62.95
Customize
Store Qty
391 Features
802.3af/at/bt PoE input to simultaneous PoE and VDC output Selectable VDC output: 5V, 9V, 12V, 24V Combined outputs up to 72W with 90W input 2-pair and 4-pair input compatible Gigabit Ethernet compatible Short circuit, over current, and over temperature protection DIN mount metal housing Industrial temperature operation: -40C to +75C Applications
Power Non-PoE Devices from a PoE Network Deploy Remote IoT & Sensor Equipment Security & Surveillance Installations Wireless Networking Industrial and Commercial Control Systems Edge Devices in Distributed Networks Short Description
PoE Splitter, 802.3at/bt/48V Passive PoE IN, Selectable 5V/9V/12V/24V 802.3bt PoE OUT, 72W Max, GigE Long Description
The POE-SPLT-BT-UNI-P Active splitters are unique, Gigabit speed, Power over Ethernet adapters which convert an 802.3af/at/bt PoE input to an 802.3af/at/bt PoE output plus a selectable VDC output of 5V, 9V,12V or 24VDC on a wire terminal connector. They have various protections for short circuit, overload and over temperature. If powered by 802.3bt PoE @ 90W the total output power is 72W Max. If powered by 802.3at @ 30W then total output power is 24W. If powered by 802.3af @15.4W the total output power is 12W. Input power should be ~20% higher than required total output power. Technical Links
Spec Sheet http://www.tyconsystems.com//specsheets/POE-SPLT-BT-UNI-P%20Universal%2090W%20GigE%20Spitter%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE-SPLT-BT-UNI-P%20User%20Guide.pdf KnowledgeBase
