RemotePro®, TPDIN® 157W, 24/48V 200W OUT, 7 Port GigE 802.3at/passive PoE switch, 720W Solar, 720Ah SLA Battery, 8640Wh
$7,179.95
Customize
Store Qty
13 Features
Complete 720W remote power solution for off-grid operation Supports up to 157W continuous power with 6 hours peak sun High performance sealed lead acid AGM batteries with up to 720Ah capacity MPPT solar charge controllers with RS485 interface Thermostatically controlled ventilation Weatherproof outdoor enclosures Expandable ground-mounted solar mount Wall or pole mounted Applications
Wireless Base Stations Wireless Bridge and Repeaters Remote Lighting Off-Grid Power Surveillance Cameras Backup Power Short Description
RemotePro®, TPDIN® 157W, 24/48V 200W OUT, 7 Port GigE 802.3at/passive PoE switch, 720W Solar, 720Ah SLA Battery, 8640Wh Long Description

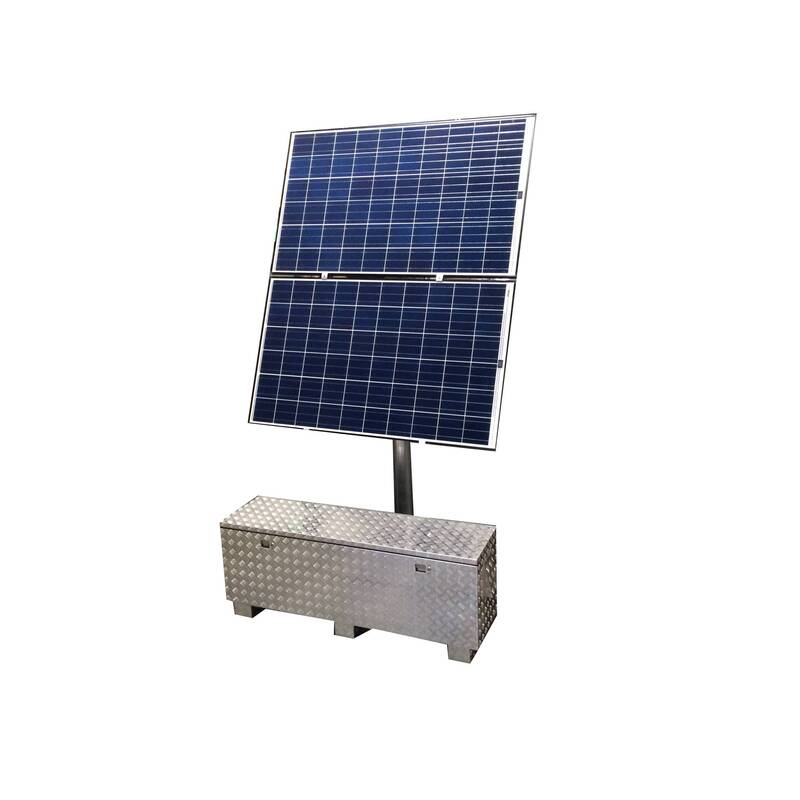

The RemotePro® 720W Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates. The systems are available with MPPT temperature compensated solar charge controllers with an RS485 interface for remote monitoring with a Tycon TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter. The RPAL48 has a 48V MPPT with 7 port GigE PoE switch and various controls for email alerts and remote monitoring. The solar controllers turn off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers. The outdoor enclosures are powder coated steel pole mount or diamond plate aluminum ground mount. They are hinged and gasket sealed with locking closures. They have cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C. The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years. The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller. The solar mount includes the concrete anchors that are necessary for mounting. Tilt adjustment range is 10-65 deg and can be adjusted by one person. The mount can be expanded to hold 4 panels (Kit # TPSM-350x4-AdapterKit) or 6 panels (Kit# TPSM-350x6-AdapterKit). This is useful if more solar capacity is needed in the future. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/RemotePro_720W_Solar_Spec_Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/8000105_RPAL48_TPDIN-SC48-20_quick_install_guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/remotepro
