Key Features:
Features
- Low Cost Complete Mobile Solar Remote Power Solution for Off-Grid operation. Fully Assembled. Sets up in minutes.
- Weatherproof Outdoor Locking Enclosure with High Performance Sealed Lead Acid Battery. Thermostatically Controlled Ventilation.
- 720W Solar Capacity – Supports up to 160W continuous power with 6 Hrs. Peak Sun. Heavy Duty galvanized 360° adjustable solar mount with10-65deg tilt. 25Year Solar Panel Guarantee.
- MPPT Temperature Compensated Solar Charge Controller: 60A Solar, 30A Load, 99% Efficiency.
- Complete Remote Monitoring and Control – Email Alerts and Manual/Automatic Reboot. Monitor Solar Voltage & Current, Battery Voltage & Current, Load Current, Temperature. Disconnect Load Power.
- Pneumatic Four Position (9ft, 12ft, 15ft, 18ft) Locking Aluminum Extension Mast for up to 110lb load. Raises fully in about 90 seconds using the integrated air pump.
- Regulated 12VDC, 56VDC and Un-regulated 24VDC Output at Top of Mast. Includes surge protected Gigabit 5 port PoE Layer 2 Switch with one 90W 802.3bt PoE Port, three 802.3at PoE+ Ports and one 24V Passive PoE Port, all at top of pole. Dual CAT6 Shielded connections between top of mast and battery enclosure.
- Protected and Secured Wiring to deter vandals.
- Dual Charging. Convenient Backup Generator or Grid Power Port. Charge batteries using solar or AC power.
- Can be Moved with Forklift or Pallet Jack. Four Support / Leveling Jacks.
- Deck Space
- Galvanized Welded Steel Tube/Plate Construction.
- Solar Panel Cover and Ratchet Straps for secure travel protection, Included.
- Options: Tycon BreezePro® Wind Turbine Kit, guy line kit and ground anchor kit
Applications
- Construction Sites
- Equipment Yards
- Remote Lighting
- Agriculture Applications
- Surveillance Cameras
- Off-Grid Power on Demand
- Emergency Power
- Wireless Equipment
- Concerts and Festivals
- Air Quality Sensors
- Remote Pumping
- Forest Fire Monitoring
Description

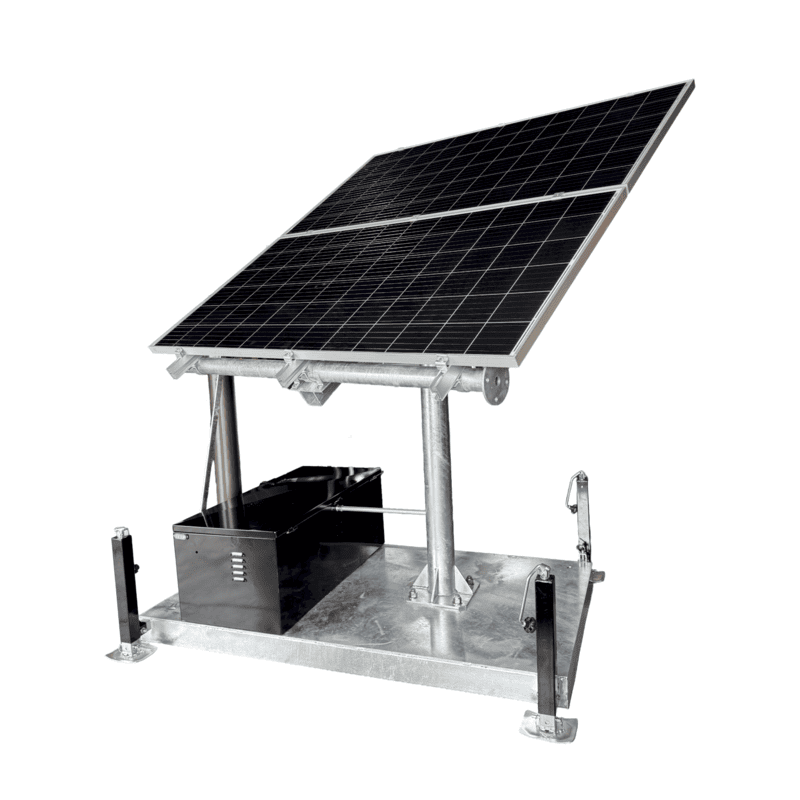

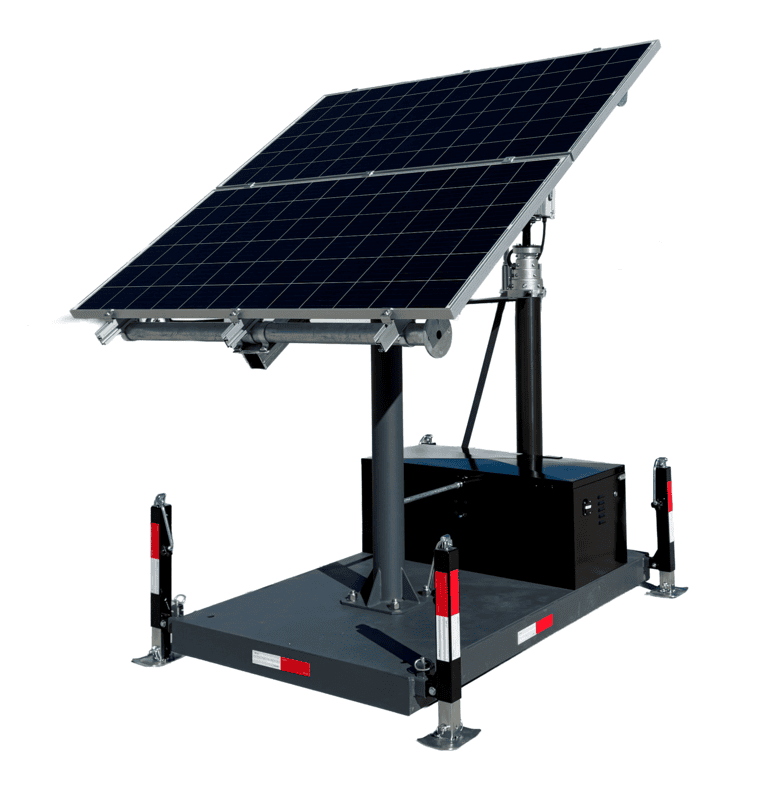

The MobileSolarPro® Skid-Series delivers a fully assembled, portable solar power system ideal for off-grid use. With up to 720 W solar capacity and a heavy-duty, adjustable 360° tilt/rotation mount, you get robust and reliable power even in remote locations. The system supports up to 160 W continuous power with 6 hours of peak sunlight, and includes a temperature-compensated MPPT solar charge controller (60 A solar / 30 A load) for efficient energy conversion.
Built into a weatherproof, locking enclosure, the Skid system is offered with either sealed lead-acid or wide-temperature LiFePO4 battery options. The battery banks deliver dependable energy storage and support long term deployments, while ventilation and rugged construction ensure the system withstands harsh environmental conditions.
For added flexibility and ease of integration, each unit features remote monitoring and control, with tracking of solar input, battery status, load draw, temperature, and the ability to automate load or generator activation. Outputs include regulated 12 VDC, 24 VDC and 56 VDC, plus a 5-port PoE Layer 2 switch — perfect for powering cameras, sensors, radios, or network devices directly from the solar system.
Whether deployed for temporary lighting, security, remote surveillance, agricultural monitoring, or off-grid communications, the MobileSolarPro® Skid-Series offers a rugged, flexible, and turnkey solar solution — ready to power critical equipment with minimal setup and maximum reliability.
