12V 120W OUT Battery Charger, 120/240VAC IN, w/ US AC Power Cord, XT DC Connector
$64.95
Customize
Store Qty
501 Features
Battery Charger 12VDC, 120W Total Power Over-Voltage, Over-Current, Over-Temp, Over-Load, Short-Circuit Protections LED indicator: Red=Charging, Green=Battery Full Wide temperature operation Small form factor, low cost CE and FCC Certifications Applications
Wireless Base Stations Cellular Base Stations Surveillance Systems Battery Backup Systems Short Description

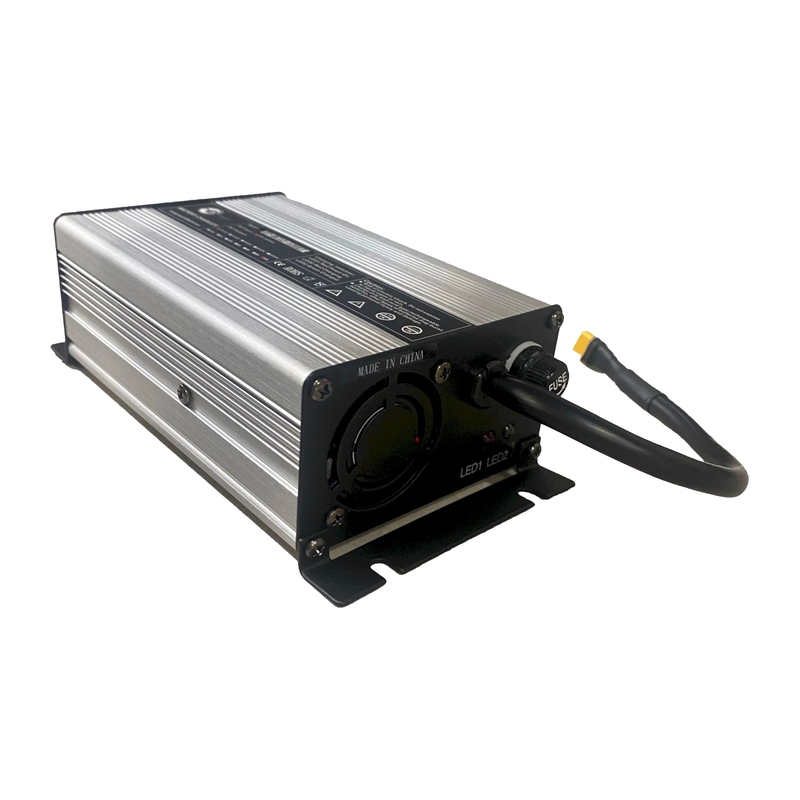

12V 120W OUT Battery Charger, 120/240VAC IN, w/ US AC Power Cord, XT DC Connector Long Description
The TP-BC12-120XT battery charger provides up to 120W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries and also Lithium batteries with a BMS that accept Lead Acid charging voltages. The charger has various protections for short-circuit, over-load, over-voltage, over-current and over-temp. It operates over a wide temperature range. It includes an XT30 connector and pigtail cable for quick disconnect. There is an LED which indicates charging (Red) or battery full (Green). The unit has a right angle removable AC cord with a North American 3 Prong Plug. The units are auto-ranging so they can work from 90VAC to 264VAC. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/TP-BC12-120XT%20Battery%20Charge%20Controller%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/8000118_TP-BC12_24-120XT_Battery_Charger_User_Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/upspro
