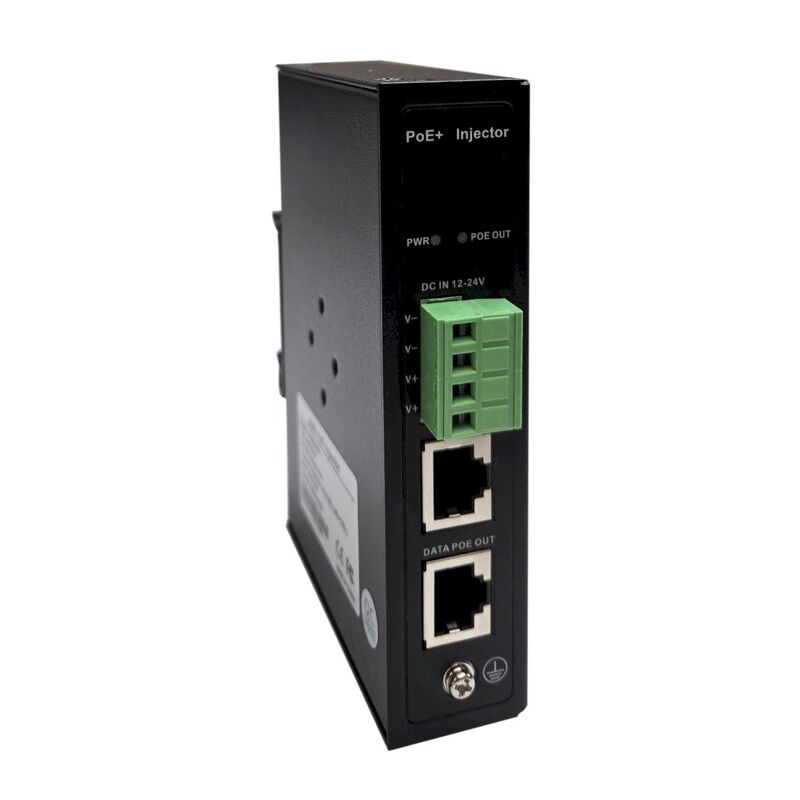

DC PoE Injector, 10-30VDC IN, 54V 60W 10G 802.3bt PoE OUT, Din/Wall Mount
Key Features:
• 10G PoE Power Injector
• Runs on battery power
• 802.3bt 54V 60W PoE Output
• DIN Rail or Wall Mount
• Dual DC Inputs
Product Details
Features
- 12-24VDC to 54VDC Efficient DCDC Converter
- 802.3bt 54V 60W Class 6 PoE++ Output
- 4 Pair Power Delivery
- 10/100/1000Mb/2.5G/5G/10G Compatible
- DIN Rail or Wall Mount (Brackets Included)
- Over Current, Over Temperature, LVD Protections
- Metal Housing, Removeable Wire Terminal Connector
- Wide Temperature Operation: -20C to +60C
Applications
- Solar Battery Systems
- Vehicular and Marine Applications
- Wireless Equipment
- Security Systems
Description
The TP-DC-12BT60-10G is a DC-to-DC PoE++ inserter designed for reliable performance in battery-powered systems,
accepting a 12-24VDC input. It supports data speeds from 10/100Mb to 10G, making it ideal for modern, high-speed
networks. The durable metal enclosure comes with brackets for easy DIN rail or wall mounting.
Built-in protections safeguard against overloads, overheating, and Low Voltage Detect (LVD). With an operating
temperature range of -20°C to +60°C, this inserter ensures dependable operation in challenging environments.
