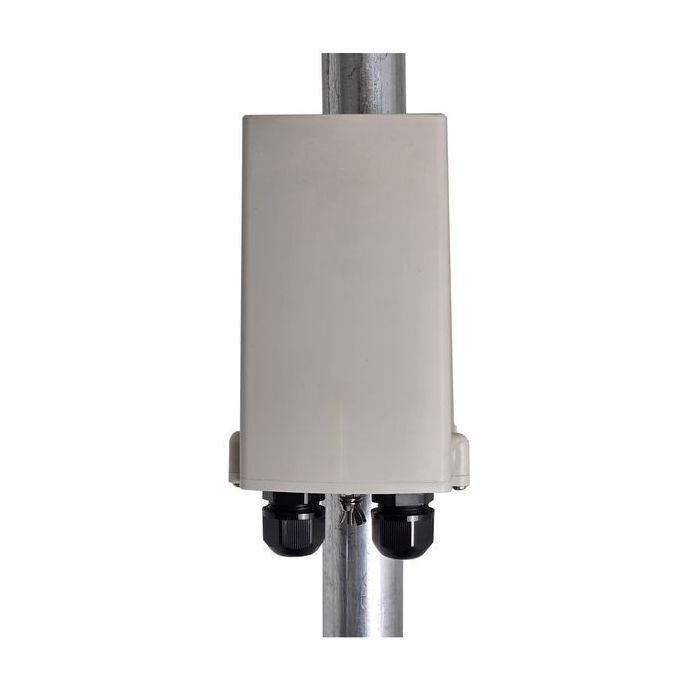

GigE PoE Lightning/Surge Supressor, Outdoor Weatherproof Pole Mount, 77V Clamp Voltage, 5KA
$60.95
Customize
Store Qty
20 Features
Surge Protector Complies with IEC 61643-21 Standard 10/100/1000Mb Data Rate CAT5e/6/6a compatible, all 8 pins protected Shielded RJ45 jacks with split gasket cable glands IP66 waterproof and UV protected for outdoor applications Applications
Wireless Access Points and Client Devices IP Phone and Security Camera Systems Industrial Control Systems Short Description
GigE PoE Lightning/Surge Supressor, Outdoor Weatherproof Pole Mount, 77V Clamp Voltage, 5KA Long Description
The TP-ESP-GPOE-OD are a low cost Outdoor Ethernet Surge Protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. The surge protector is compatible with 10/100/1000M PoE systems up to 56V. Protection is provided on all 8 CAT5e/6/6a wires. There is a ground wire connection on the bottom of the housing which can be connected to the metal pole or to a separate ground wire, connected to earth ground. It protects equipment by clamping excess voltage and diverting surge currents, ensuring reliable operation in 56V DC environments. Note: For best results, mount the surge protector as close as possible to equipment that needs protection. There is no polarity so connections can be made to either port. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-ESP-GPOE-OD%20Outdoor%20PoE%20Surge%20Protector%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/TP-ESP-GPOE-OD%20User%20Manual.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe
