TP-SW5G-D+
Share :
Features
- Triple Power Inputs: 802.3bt PoE, Wire Terminal, 4 Pin mini DIN
- Gigabit Compatible
- Built-in Surge Protection
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- Low Self Power and High Temperature Operation
- DIN Rail Adapters included
Applications
- Power 4 802.3at devices from an 802.3bt PoE Input
- Remote or Local Power for Cameras and Wireless Radios
- Functions as Ethernet/PoE repeater
- PoE Lighting Applications
Description

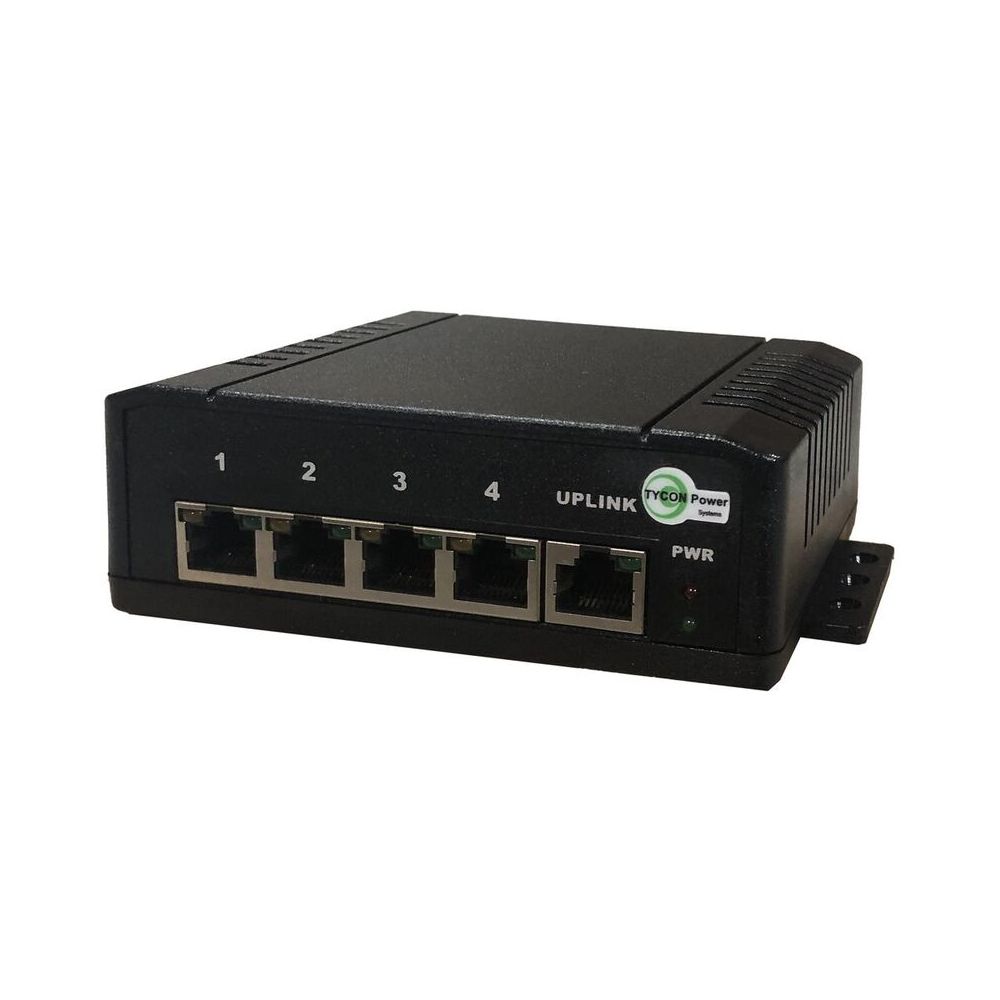

The TP-SW5G-D+ Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high speed
Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3at PoE outputs. Ports 1-4 are 802.3at 35W PoE
Out. The Uplink Port 5, is 802.3bt compatible so the switch can accept up to 100W PoE on 4 pairs to power the switch
and connected devices remotely over CAT5 or higher Ethernet Cable. The Ethernet spec supports distances up to
100m (328ft). By using as a repeater, 200m total distance is realistic.
The switch can accept power via three different interfaces: Wire Terminal Connector, 4 pin Mini DIN connector or via
802.3at/bt PoE input to Uplink Port 5. Two different power inputs can be used for redundancy. The higher voltage
takes priority.
The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection. The units have
15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide
operating temperature range for outdoor and industrial applications.
