5 Port GigE PoE Switch, 44-57VDC IN, 1 Port 90W 802.3bt PoE, 3 Ports 802.3at, 1 Port 24V 12W PoE OUT
Key Features:
• PoE Switch
• Built-in Surge Protection
• Automatic MDI/MDI-X Crossover
• Automatic Speed and Duplex Sensing
• Din Rail Adapters Included
Product Details
Features
- One (90W) 802.3bt PoE, Three (30W) 802.3at PoE and one (12W) 24V Passive PoE port
- Gigabit Compatible
- Built-in Surge Protection
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- Low Self Power and High Temperature Operation
- DIN Rail Adapters included
Applications
- Power different PoE devices from a single 48V supply
- Cameras and Wireless Radios
- PoE Lighting Applications
Description

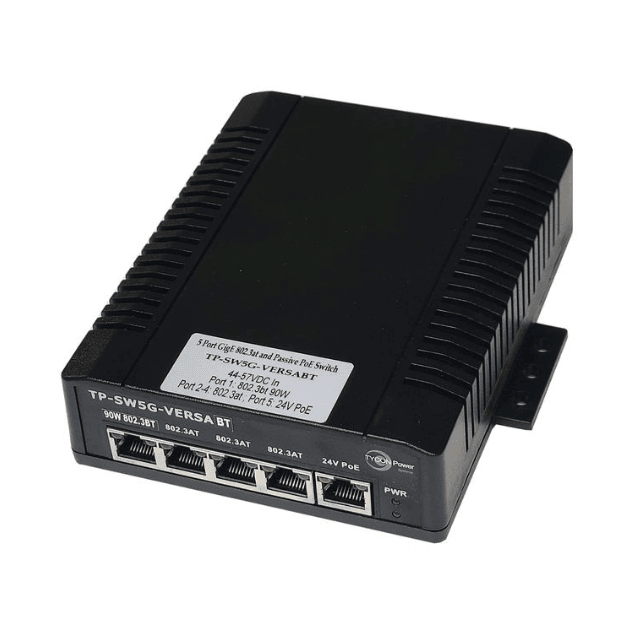

The TP-SW5G-VERSABT Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high
speed Layer 2 Ethernet switches with multiple function ports. Port 1 is a 90W 4pair 802.3bt PoE port; Port 2,3,4 are
48V 30W 802.3at compatible ports; Port 5 is a 24V 12W Passive PoE port. This allows a customer to power up
multiple PoE devices with different power requirements. The switch requires a 44-57VDC (4A) power input.
The units are compatible with Category 5 or higher Ethernet cables. The RJ45 connectors are shielded and grounded
to the common “FG” (Frame Ground) connection. The units have 15kV surge protection on all Ethernet wires and are
conformal coated for moisture protection. They have a wide operating temperature range for outdoor and industrial
applications.
