5 Port Unmanaged Industrial GigE 802.3at PoE Netwrk Switch, 10-36VDC Wire Term In (12AWG), 4x PoE + 1x Uplink Port, Up to 120W Total Out Power, Incl DIN Rail Mt Kit, Metal Encl, No Fan
$81.95
Customize
Store Qty
0 Features
Industrial Strength (-30C to +60C Operating Temperature) 10/100/1000 Gigabit Compatible Ethernet 10-36VDC Redundant Power Supply Input 4x 30W 802.3at PoE+, 1x uplink 10 Gigabit Switching Capacity Surge Protected Inputs, Fan-less Metal Shell DIN Rail Mount, Wall Mount or Desktop mode Applications
Outdoor Network Installations PoE Lighting Applications Cameras and Wireless Radios Vehicle Applications Off-Grid Applications Factory Floor Networks Marine Applications Short Description
Tycon Power® 5-Port Industrial Gigabit 802.3at PoE+ Switch, 10–36VDC Input, Built-In 54VDC PoE Conversion, 4x 30W PoE+ Ports, 1x Gigabit Uplink, 120W Total PoE, Low Voltage Disconnect, Fanless Metal Enclosure Long Description

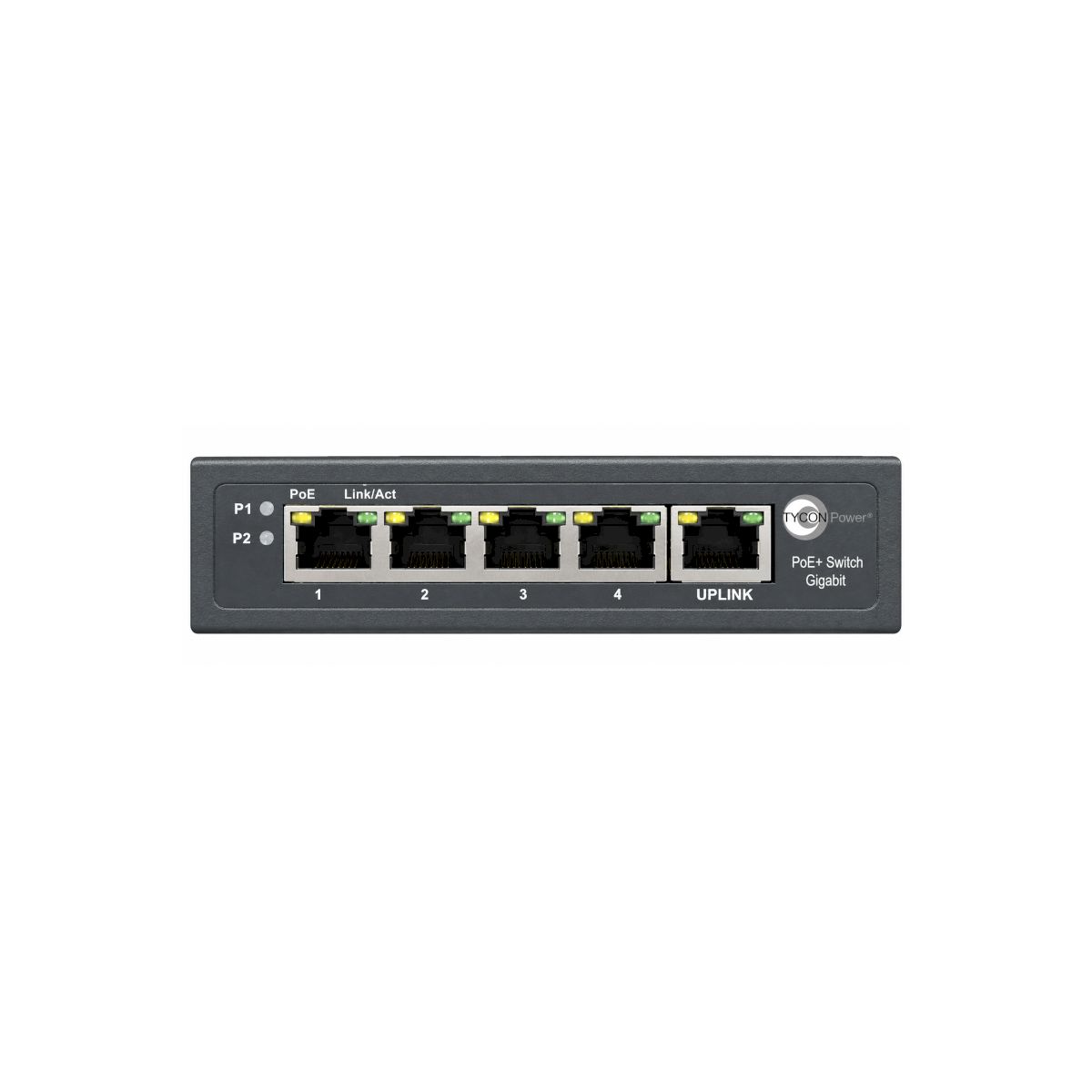

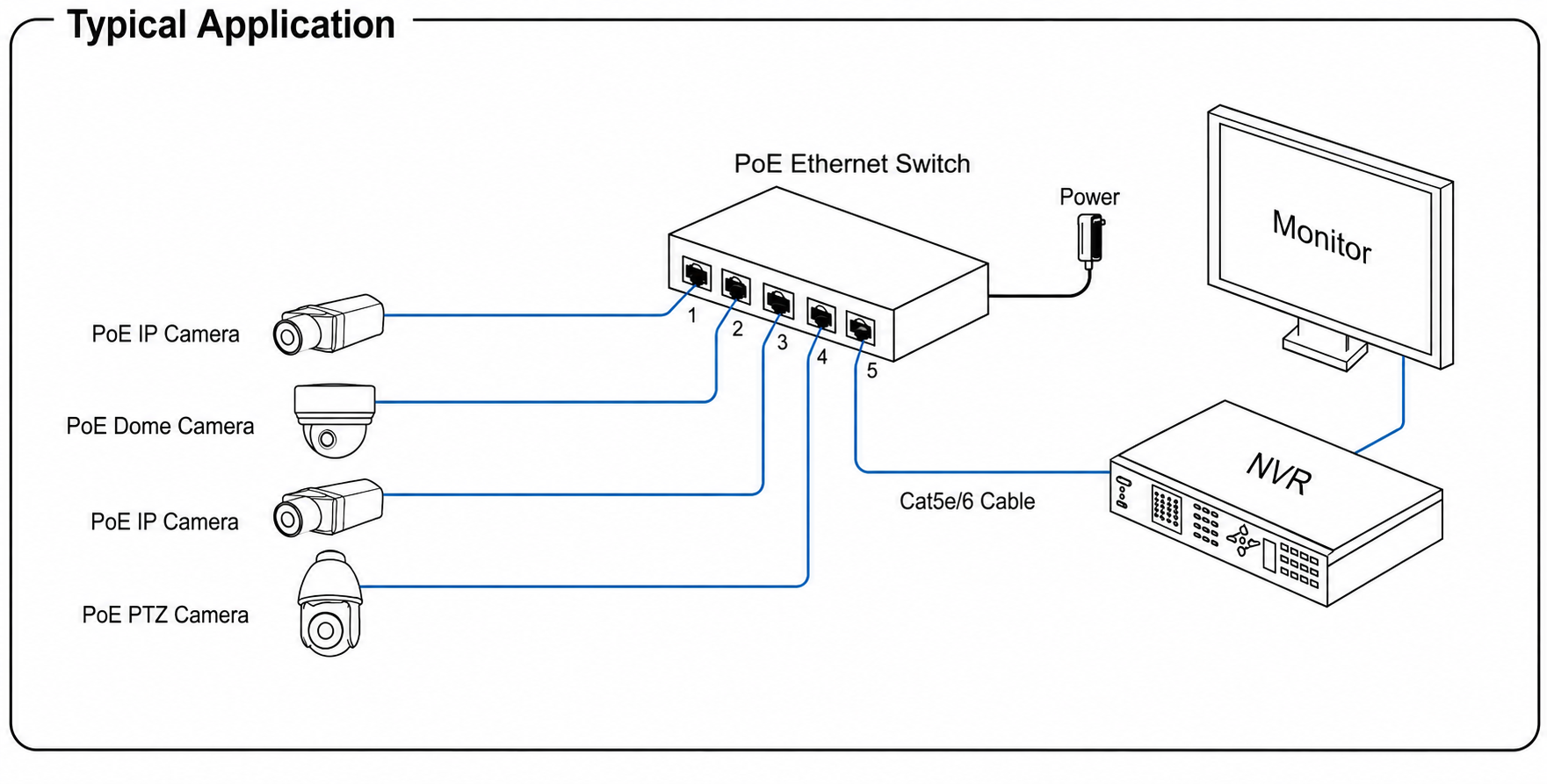

The Tycon Power® TP-SW5G24-AT is a compact, fully automatic Layer 2 Gigabit Ethernet switch designed for industrial, vehicle, marine, off-grid, and battery-powered applications. The switch includes 5 Gigabit Ethernet ports: • 4 × 802.3at PoE+ ports providing up to 30W per port (120W total PoE power) • 1 × Gigabit uplink port The PoE+ ports can power devices such as IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment while providing high-speed Gigabit data connectivity. A built-in DC-to-DC converter allows the switch to supply standard 54VDC PoE+ output while operating from a wide 10–36VDC input range. This makes the switch ideal for systems powered by batteries or DC power sources, including solar systems, vehicles, boats, and remote installations. The switch is specifically designed for low power consumption and includes Low Voltage Disconnect (LVD) functionality to help protect batteries and extend operating time compared to standard Ethernet switches. Dual DC power inputs provide support for both primary and backup power connections for improved reliability. The switch accepts 10–36VDC input through a wire terminal connector supporting up to 12AWG wire. When both power inputs are connected, the higher voltage input automatically operates as the primary source while the lower voltage input serves as the backup. Compatible with Cat5e, Cat6, or higher Ethernet cabling, the switch supports standard Ethernet distances up to 100m (328ft). Built for demanding environments, the TP-SW5G24-AT features shielded and grounded RJ45 connectors, surge protection on all ports, and a wide operating temperature range for reliable performance in industrial and outdoor applications. Technical Links
Spec Sheet https://www.tyconsystems.com//specsheets/TP-SW5G24-AT%20%205%20Port%20Gigabit%20802.3at%20PoE-%20Switch%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com//usermanuals/TP-SW5G24-AT%20User%20Manual.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe
