8 Port Unmanaged Industrial GigE 802.3btt PoE++ Netwrk Switch, 46-57VDC Wire Term In (12AWG), 4x PoE++ + 2x Uplink Port + 2x SFP, Up to 360W Total Out Power, Incl DIN Rail Mt Kit, Metal Encl, No Fan
$125.95
Customize
Store Qty
0 Features
Industrial Strength (-30C to +60C Operating Temperature) 10/100/1000 Gigabit Compatible Ethernet and 1G Fiber 46DC to 57VDC Redundant Power Supply Input 4x 90W 802.3bt PoE++, 2x uplink, 2x SFP Ports 16 Gigabit Switching Capacity Surge Protected Inputs, Fan-less Metal Shell DIN Rail Mount, Wall Mount or Desktop mode Applications

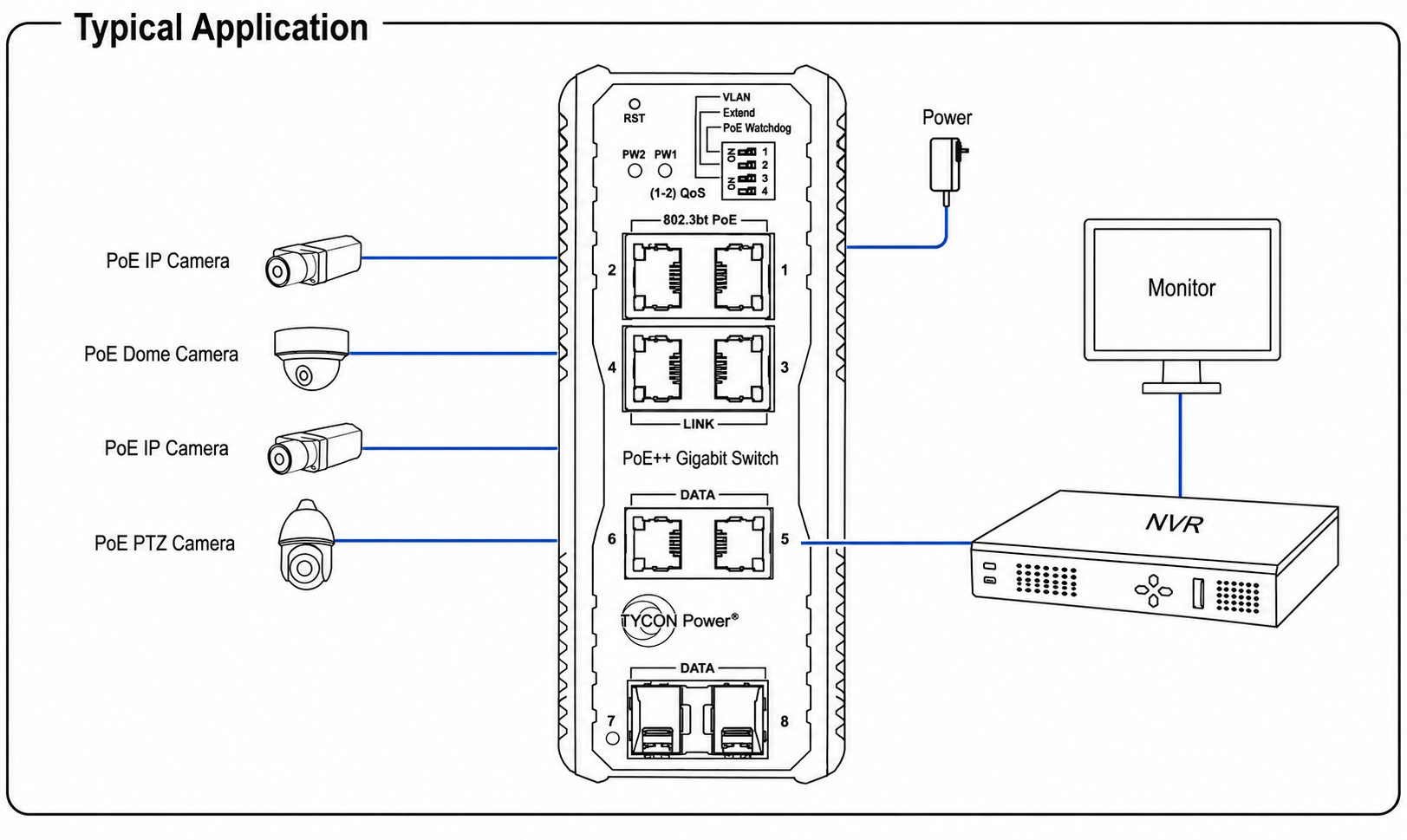

Outdoor Network Installations Cameras and Wireless Radios PoE Lighting Applications Factory Floor Networks Short Description
Tycon Power® 8-Port Industrial Gigabit 802.3bt PoE++ Switch, 46–57VDC Input, 4x 90W PoE++ Ports, 2x Gigabit Uplinks, 2x SFP Ports, 360W Total PoE, DIN Rail Mount, Fanless Metal Enclosure Long Description

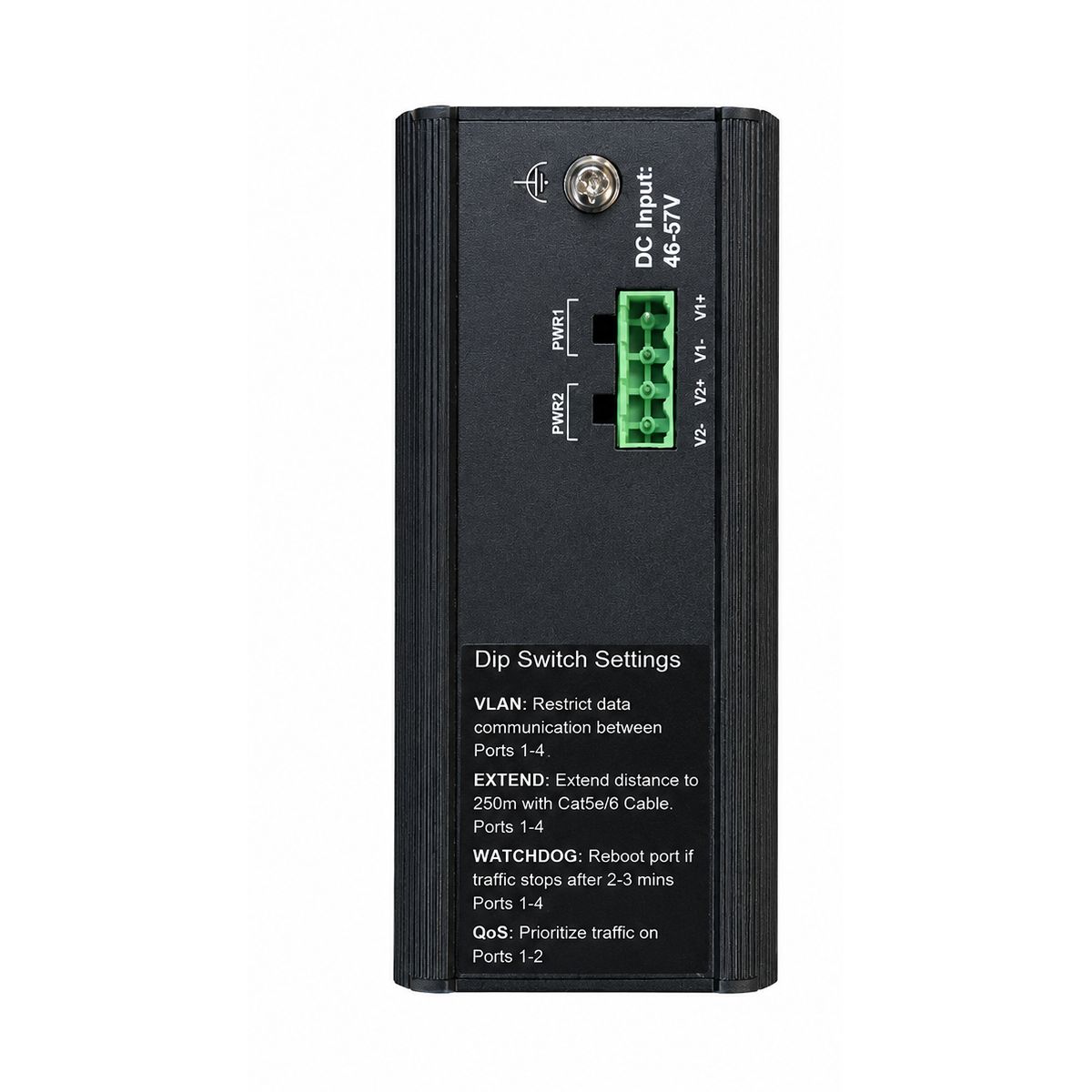

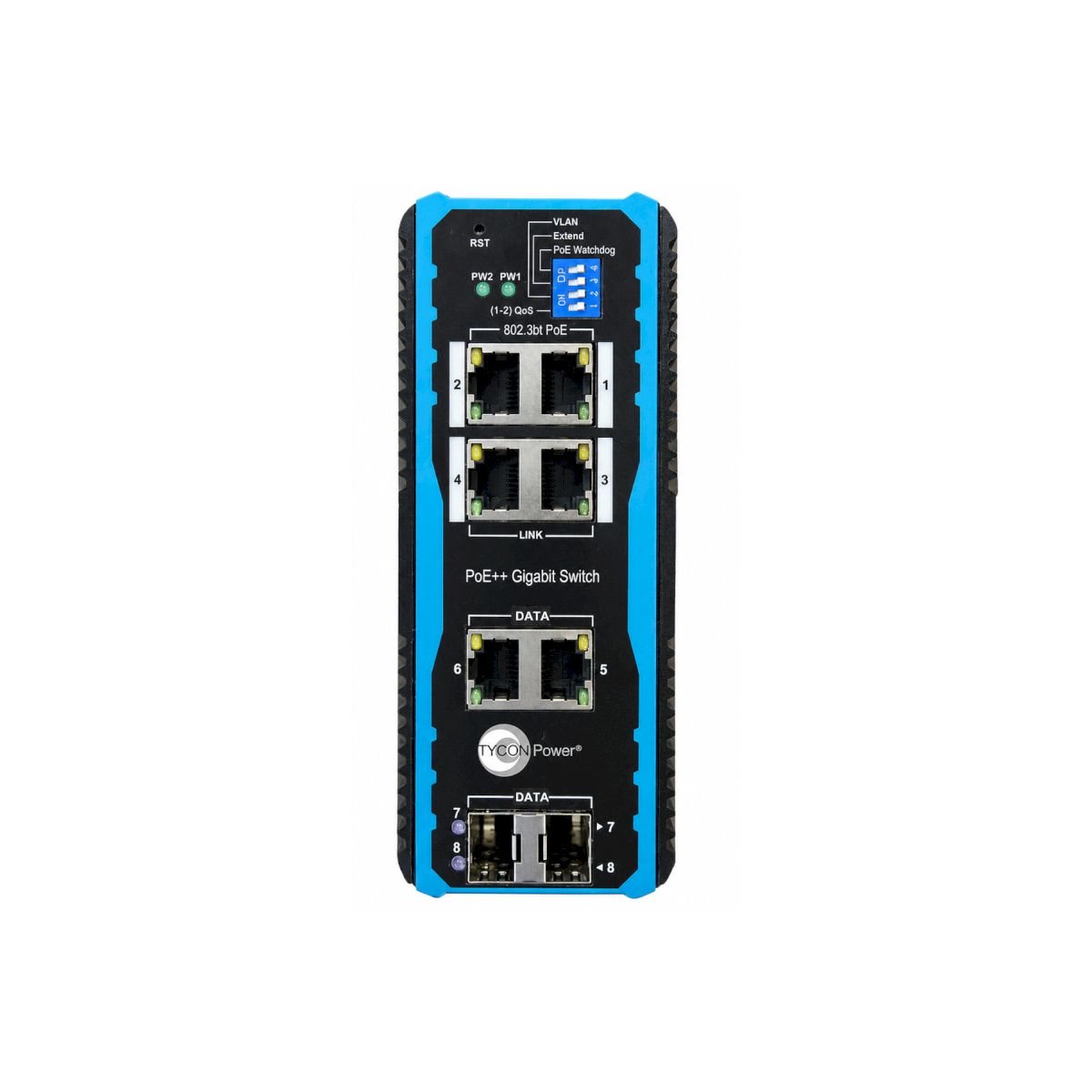

The Tycon Power® TP-SW8G-BT-SFP is a fully automatic Layer 2 Gigabit Ethernet switch with 8 ports, including: • 4 × 802.3bt PoE++ ports delivering up to 90W each (360W total) • 2 × Gigabit uplink ports • 2 × SFP ports The SFP ports support standard single-mode or multimode fiber transceivers, as well as RJ45 transceivers for two additional copper Ethernet ports. The switch includes DIP-switch controlled features such as VLAN, QoS, PoE watchdog, and Network Extend mode. Dual power inputs provide primary and backup power support. The unit requires 46–57VDC input via a wire terminal connector supporting up to 12AWG wire. Compatible with Cat5e/6 or better Ethernet cables, the switch supports standard network distances up to 100m, or up to 250m in Extend mode. Fiber connections can reach up to 120km depending on the SFP transceiver used. Designed for industrial and outdoor applications, the switch features shielded and grounded RJ45 ports, surge protection on all ports, and a wide operating temperature range. Technical Links
Spec Sheet https://www.tyconsystems.com//specsheets/TP-SW8G-BT-SFP%20%208%20Port%20Gigabit%20802.3bt%20PoE-%20Switch%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com//usermanuals/TP-SW8G-BT-SFP%20User%20Manual.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe
