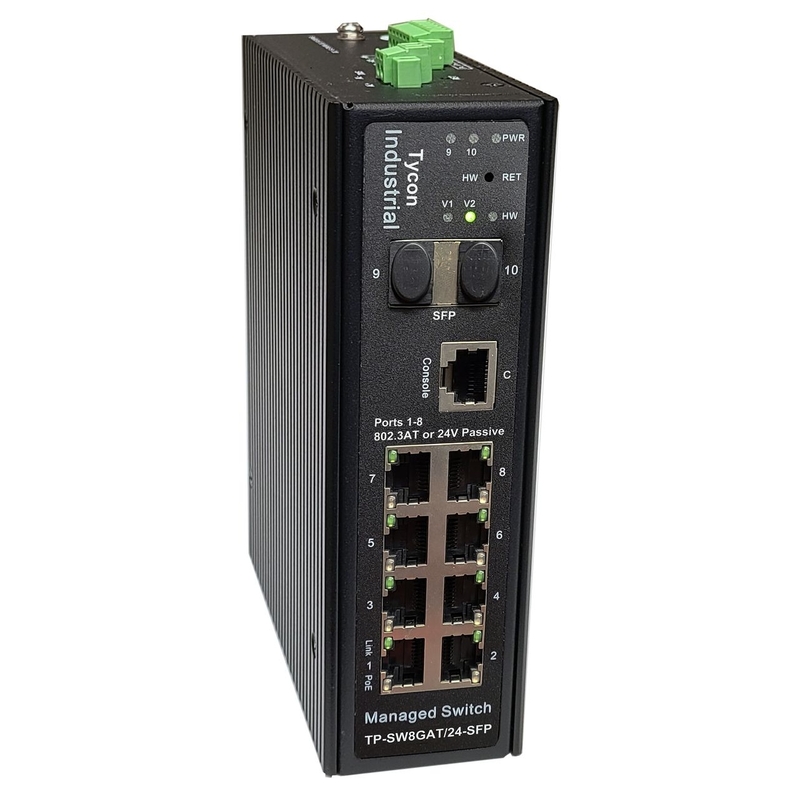

TP-SW8GAT/24-SFP

• Outdoor Network Installations
• Cameras and Wireless Radios
• Factory networks
• PoE Lighting Applications

The TP-SW8GAT/24-SFP Power over Ethernet (PoE) 10 port Gigabit switches offered by Tycon® are fully automatic

high speed Layer 2+ Ethernet manageable switches. The switch has user configurable PoE ports to provide 802.3AT

or Passive 24V PoE which enables powering different devices from the same PoE Switch. It’s two 1Gb SFP fiber ports

accept standard single mode or multimode fiber transceivers.

The PoE ports are manageable via the user interface. The maximum total power for all ports is an impressive 240W.

The switch features security protocols like SSH and SSL for secure access of the switch command

interface. The interface can be accessed via the serial console port or any of the Ethernet ports. The

command interface can be controlled via web browser, command line interface(CLI), TELNET, SSH or

SNMP.

With L2+ features, the switches provide better manageability, security, QOS features and performance.

VLAN, Port Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, ARP Inspection, Storm

Control, IP Source Guard, Access Control Lists, PoE management are just some of the features

available with this Industrial PoE Switch.

Spanning Tree, Jumbo Frames, Ring Topology are also supported.

The switches feature two separate power inputs for primary and backup power. They require a 37VDC

to 57VDC input on the wire terminal connector which is capable of accepting up to 12AWG wire.

The units are compatible with Category 5 or higher Ethernet cables with network distances up to 100m.

The optical range for fiber ports is up to 120Km. The RJ45 connectors are shielded and grounded to the

case. The units have surge protection on all ports and are conformal coated for moisture protection.

They have a wide operating temperature range for outdoor and industrial applications.
