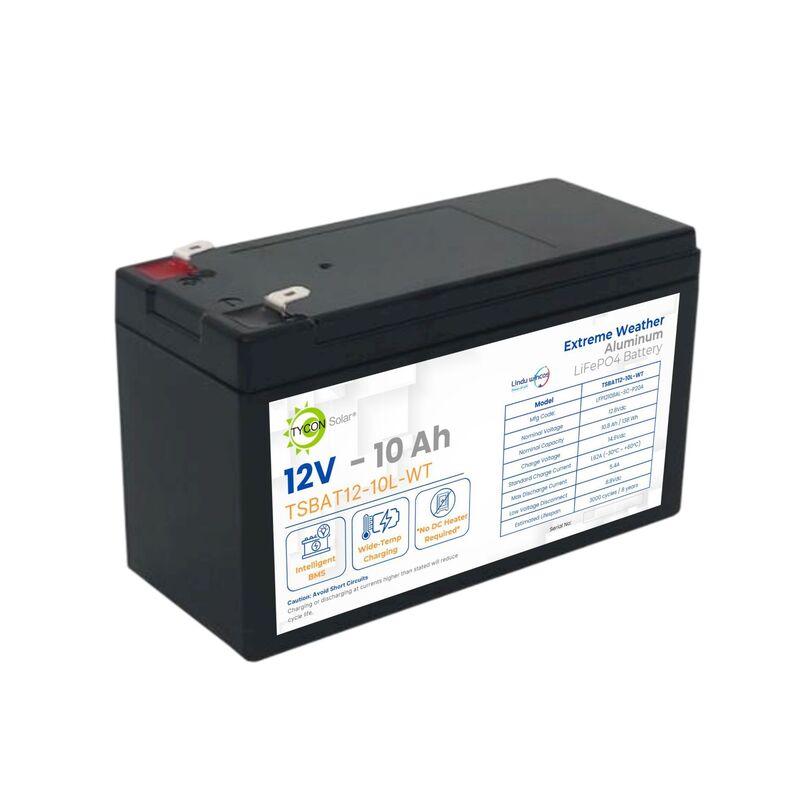

12V 10Ah Wide Temp LFP Battery, -30C to 60C Charging
$106.95
Customize
Store Qty
0 Features
Stable and Safe Lithium Iron Phosphate (LiFePO4) Chemistry Drop-in Replacement for Lead Acid Battery (same physical size) On Board Battery Management System (BMS) Wide Temperature Charging: -30C to +60C Wide Temperature Discharge: -40C to +70C Longer Cycle Life: Up to 20X over Lead Acid Higher Power: 2x more Watt Hours than Lead Acid Less Weight: ~40% less than Lead Acid Applications
Remote Power Systems Off-Grid Systems Lighting Backup Power Systems UPS Systems RV and Boat Short Description
12V 10Ah Wide Temp LFP Battery, -30C to 60C Charging Long Description
The TSBAT12-10L-WT LFP (LiFePO4) battery is a wide temperature, high reliability drop-in replacement for comparable Lead Acid batteries. It provides >4000 discharge cycles @ 80% discharge, about 20x what a Sealed Lead Acid battery typically provides. It also provides almost 2x usable energy storage over lead acid batteries with the same Ah rating. Typically LiFePO4 batteries should not be charged below 0C and require DC heaters to be able to charge at low temperatures but with our wide temp Aluminum anode, the battery is able to charge down to -30C without adversely affecting cycle life. The integrated battery management system (BMS) handles all charging and discharging regulation so that the battery can be charged using the same solar or grid connect chargers used for Lead Acid batteries. Along with its standard mechanical size, the integrated BMS allows the battery to be a true drop-in replacement for a similar sized Lead Acid battery. The LiFePO4 chemistry is very stable and minimizes the risk of explosion or combustion due to impact, overcharging or short circuit. The 40% less weight make the battery easier to transport and install at remote sites. Up to 4 batteries can be connected in series or parallel to achieve a higher battery bank voltage (series) or more energy storage (parallel). There are two F2 spade terminals for connecting battery cables. For long term storage it is recommended to charge to 60% charge every 6 months. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/TSBAT12-10L-WT%20Lithium%20Battery%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/WT%20Lithium%20Battery%20User%20Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/batteries 3d_images
TPBAT12-9 12V 9AH Battery .glb
