UPSTL48-200L-600
Key Features:
Share :
Features
- Solar Ready™
- 48V MPPT Charge Controller with 7 Port GigE PoE Switch. Ports can be configured for 802.3at or 24V Passive PoE. Remote Monitoring and Control.
- Weatherproof, UV resistant, outdoor enclosures
- Powered from AC mains power and/or Solar
- LFP (LiFePO4) Lithium Batteries
- Interior space for customer electronics
- Wall or Pole Mounting
Applications
- Wireless Base Stations and Clients
- Wireless Bridge and Repeaters
- Mission critical outdoor power
- Surveillance Cameras
- Remote Sensors
- Backup Power Systems
Description

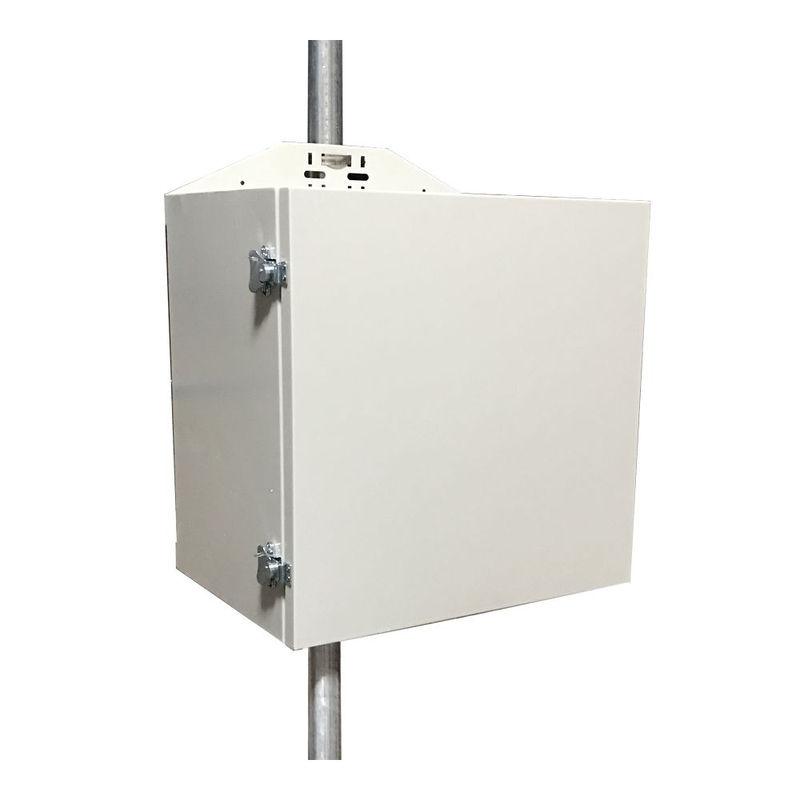

The UPSPro® STL48-200L outdoor enclosures are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (blocking diodes may be required), so a solar panel can be added as an alternate power source or to extend backup time.
Features include an advanced MPPT charge controller with 7 Port GigE PoE switch and built-in remote monitoring and management. The PoE switch ports can be configured as 802.3at or 24V Passive PoE. There is a configurable wire terminal aux port. The steel enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C.
There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There is a 1U rack mount feature in the enclosure for rack mounting. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
