GigE PoE Extender, 802.3bt IN, Dual 802.3at OUT, 60W, IP66, 100M
Key Features:
• PoE Extender
• 802.3bt / 802.3at Compatible
• 10/100/1000Mb Compatible
• Weatherproof – Outdoor rated
• Extends PoE additional 100M
Product Details
Features
- 802.3bt 60W IN, Two 802.3at 25W OUT
- 10/100/1000Mb Compatible
- Weatherproof – Outdoor rated IP66
- Easy Plug and Play Operation
- Extends PoE an additional 100m
- Auto Link Speed, Duplex and Crossover
Applications
- Wireless Equipment
- IP Telephone
- Security Applications
- Sensor Equipment
- PoE Lighting
- IP Cameras
Description

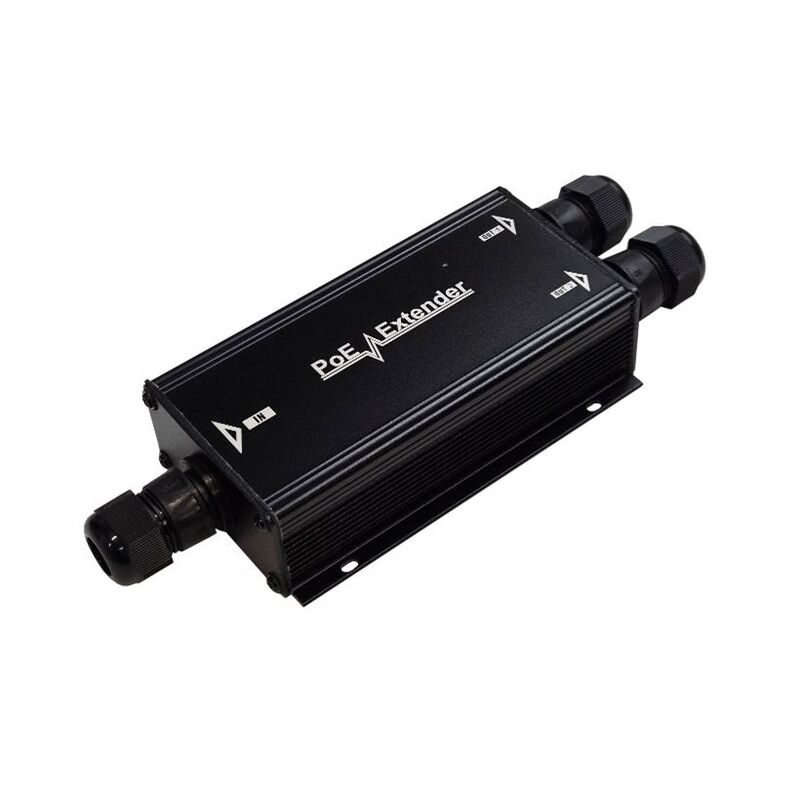

The POE-EXT-GDx2-AT is a durable, high-power Gigabit Ethernet PoE extender that lets you stretch Ethernet
connections beyond the usual 100-meter limit. You can link multiple units to extend Ethernet and PoE up to 300 meters
using CAT5 or CAT6 cables. These units are powered by PoE, so no extra power source is needed. The input is
compatible with 802.3bt 60W or 90W PoE injectors and the output provides two 802.3at 25W PoE Ports.
Built for outdoor use, the units have tough, powder-coated aluminum enclosures with an IP66 weatherproof rating. They
operate reliably in temperatures from -25°C to +55°C.
Note: If output power needs are less than 20W for both ports combined, the extender can be powered by an 802.3at
source.
