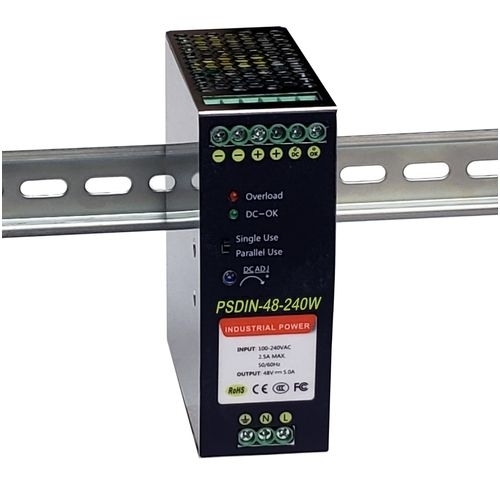

48VDC 240W Industrial 120/240VAC Power Supply, DIN Rail Mounted
Key Features:
• Power Supply
• High Power and Rugged Design
• 90-264VAC Auto Ranging Input
• 47~56VDC Adjustable Output
• -40°C to 70°C Operating Temp
$103.95
Share :
Product Details
Features
High Power and rugged design
Short Circuit, Over-Voltage, Over-current Protection
90-264VAC Auto Ranging Input
47~56VDC Adjustable Output
-40C to +70C Operating Temperature
Supports Parallel Operation
Dry Contact DC Alarm
Applications
Powering PoE Switches
IP Phone and Security Camera Systems
Telecommunications
Description
The PSDIN Series of Industrial DIN Rail mount high efficiency switching power supplies operate over a wide temperature range of -40C to +70C. There are two models to supply 120W or 240W. The input is 90 to 264VAC auto-ranging with wire terminal connections. The output is 48VDC nominal with an adjustment range from 47VDC to 56VDC. There is a switch for single or parallel operation. Two 240W supplies operating in parallel will provide 480W total power. There is an alarm output to provide a dry contact closure to trigger an alarm if the DC output fails, like during a grid power failure. The relay is closed when DC output is normal and open when DC output is in fault condition due to overload or safety shutdown.
