Pneumatic Mast 30' with accessories
$3,449.90
Customize
Store Qty
20 Features
Pneumatic Locking Aluminum Extension Mast for up to 50kg (110lb) load. Pin Lockable at Various Heights 2x CAT6 + 6x 1.5mm Internal Wires Water Drain Feature, Air Hose Fitting Includes: Air Pump, Regulator/Guage, Hose, Mast extension, Bracket. Applications
Construction Sites Surveillance Cameras Concerts and Festivals WiFi Antennas Agriculture Parking Lots Short Description
Pneumatic Mast 30' with accessories, guy lines included Long Description

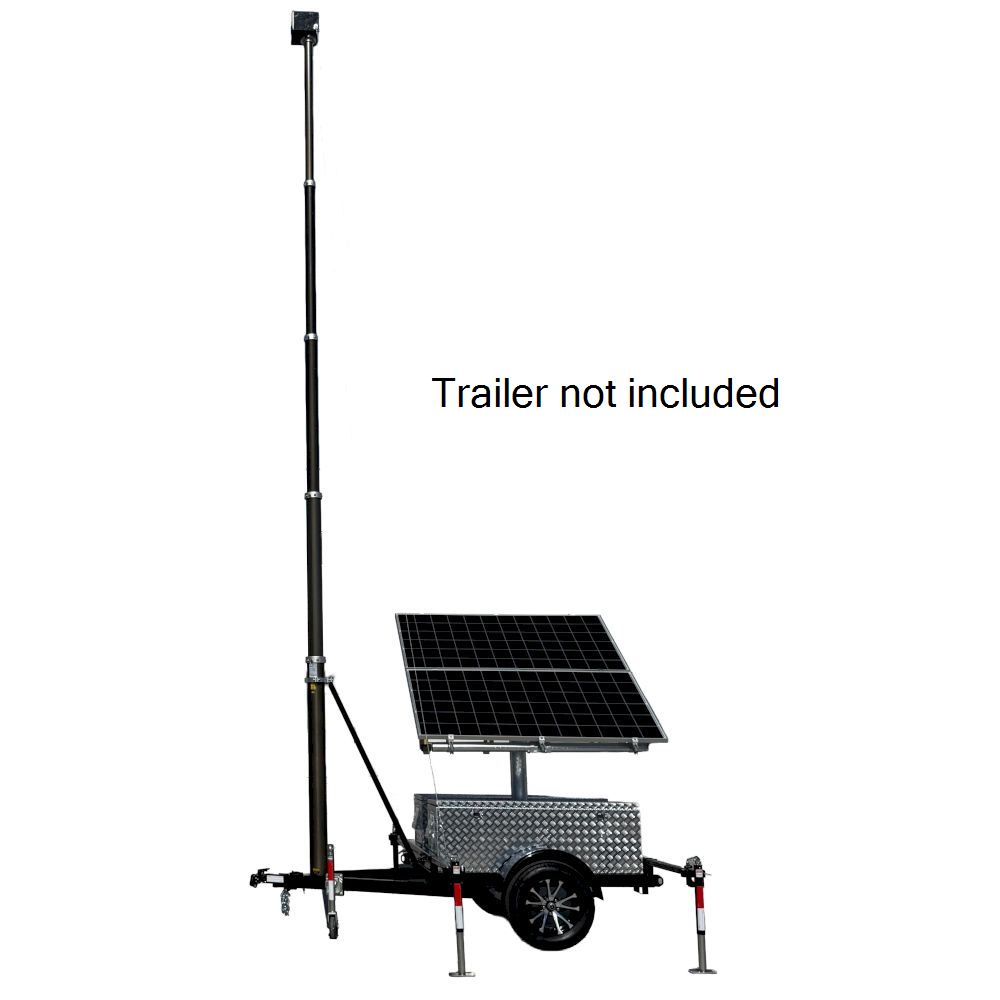

The RPMS-MAST-30 is a heavy-duty pneumatic locking aluminum mast that raises cameras, Wi-Fi antennas, lighting, and other equipment up to approximately 30 ft above ground for expanded coverage and improved line of sight. It supports vertical payloads up to 110 lb and features pin-locking collars that allow the mast to be secured at different operating heights. Two CAT6 cables and six 1.5 mm² power conductors are routed internally to simplify equipment installation and protect cabling during deployment. The system includes a 36-inch topper extension, 12V air compressor, air hose, pressure regulator and gauge, vertical surface-mount collar, and guy lines to provide additional support while the mast is raised. It is ideal for surveillance, wireless communications, construction sites, concerts, festivals, agriculture, parking areas, and other applications requiring greater mounting height. Technical Links
Spec Sheet https://www.tyconsystems.com//specsheets/RPMS_Mast_Spec_Sheet.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/mobilesolarpro-1
