Features
- Low Cost Complete Mobile Solar Remote Power Solution for Off-Grid operation. Fully Assembled. Sets up in minutes.
- Weatherproof Outdoor Locking Enclosure with High Performance Sealed Lead Acid Battery. Thermostatically Controlled Ventilation.
- Up to 1440W Solar Capacity – Supports up to 315W continuous power with 6 Hrs. Peak Sun. Heavy Duty galvanized 360° adjustable solar mount with10-65deg tilt. 25Year Solar Panel Warranty.
- MPPT Temperature Compensated Solar Charge Controller: 60A Solar, 30A Load, 99% Efficiency.
- Complete Remote Monitoring and Control – Email Alerts and Manual/Automatic Reboot. Monitor Solar Voltage & Current, Battery Voltage & Current, Load Current, Temperature. Disconnect Load Power.
- Pneumatic Four Position (9ft, 12ft, 15ft, 18ft) Locking Aluminum Extension Mast for up to 110lb load. Raises fully in about 90 seconds using the integrated air pump.
- Regulated 12VDC, 56VDC and Un-regulated 24VDC Output at Top of Mast. Includes surge protected Gigabit 5 port PoE Layer 2 Switch with one 90W 802.3bt PoE Port, three 802.3at PoE+ Ports and one 24V Passive PoE Port, all at top of pole. Dual CAT5 connections between top of mast and battery enclosure.
- Protected and Secured Wiring to deter vandals.
- Dual Charging. Convenient Backup Generator or Grid Power Port. Charge batteries using solar or AC power.
- Locking 2" Ball Hitch Tongue Lock. Four spring actuated extending (36" Max) support jacks.
- Room for Second Enclosure on Most Models for tool storage or additional battery capacity.
- Chrome Wheels, Leaf Spring Suspension, Aluminum Diamond Plate Decking, Powder Coated Welded Steel Tube Construction.
- Solar Panel Cover and Ratchet Straps for secure travel protection, Included.
- Options: Tycon BreezePro® Wind Turbine Kit, 2nd frame mounted aluminum enclosure, light kit, guy line kit, ground anchor kit, second battery bank and larger solar array.
Applications
- Construction Sites
- Temporary Security
- Temporary Remote Lighting
- Surveillance Cameras
- Off-Grid Power
- Emergency Power
- Concerts and Festivals
- Parking Lots
- Agriculture
Description

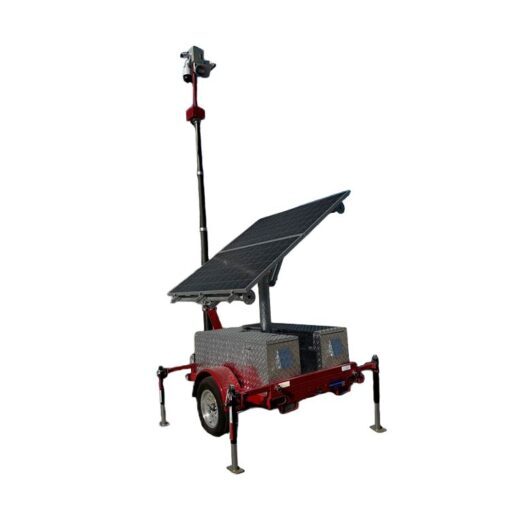

The RPMS MobileSolarPro® Series offers powerful, portable solar power for sites that need temporary lighting, security, or operations, such as construction zones, festivals, emergency response scenes, and agricultural sites. Rugged and mobile, these solar trailers deliver reliable energy wherever you deploy them.
Each system mounts high-output solar panels on a heavy-duty adjustable frame, plus includes a high-efficiency MPPT solar controller to maximize energy conversion. The trailer is built for quick setup and transport, and arrives fully assembled, so you can power cameras, lights, or tools on short notice.
Inside, a sealed battery array supports long runtime even when the sun isn’t shining. For networking or surveillance deployments, the system also includes a PoE-ready mast and Ethernet switch, enabling cameras or radios to run directly from the solar trailer without extra wiring.
The RPMS MobileSolarPro® combines mobility, solar reliability, and plug-and-play convenience in one package. It makes off-grid power practical for temporary or remote sites, without sacrificing uptime or performance.
