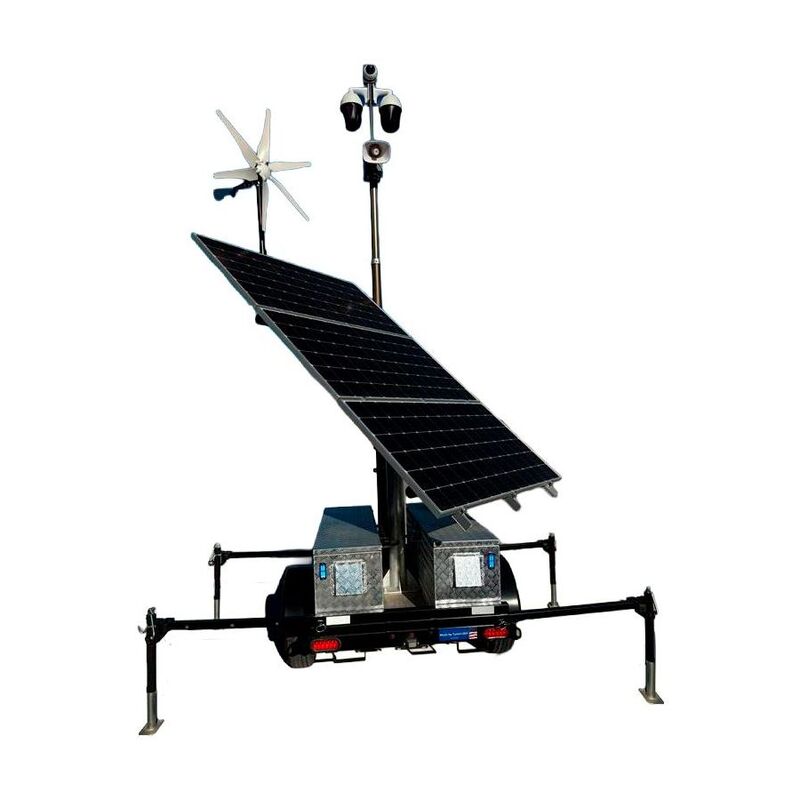

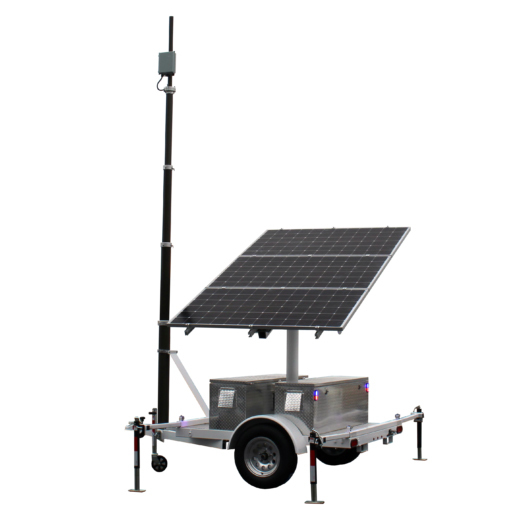

MobileSolarPro® Trailer, 180W, 12/24/56V OUT, 1080W Solar, 800Ah Lit Battery, 9600Wh, Telescope Mast, 5 Port GigE PoE Switch
$20,179.95
Customize
Store Qty
0 Features
Complete Mobile Solar Remote Power Solution for Off-Grid operation. Fully assembled, sets up in minutes. Weatherproof outdoor locking enclosure with high-performance sealed lead acid battery and thermostatically controlled ventilation. MPPT temperature-compensated solar charge controller: 60A solar, 30A load, 99% efficiency. Up to 1440W solar capacity – supports up to 315W continuous power with 6 hours peak sun. Heavy-duty galvanized 360° adjustable solar mount with 10–65° tilt. 25-year solar panel warranty. Pneumatic four-position (9ft, 12ft, 15ft, 18ft) locking aluminum extension mast for up to 110lb load. Raises fully in about 90 seconds using the integrated air pump. Regulated 12VDC, 56VDC and unregulated 24VDC output at top of mast. Includes surge-protected gigabit 5-port PoE Layer 2 switch with one 90W 802.3bt PoE port, three 802.3at PoE+ ports, and one 24V passive PoE port, all at top of pole. Dual CAT5 connections between top of mast and battery enclosure. Complete remote monitoring and control – email alerts and manual/automatic reboot. Monitor solar voltage & current, battery voltage & current, load current, and temperature. Disconnect load power. Dual charging: charge batteries using solar or AC power via convenient backup generator or grid power port. Protected and secured wiring to deter vandals. Locking 2" ball hitch tongue lock. Four spring-actuated extending (36" max) support jacks. Chrome wheels, leaf spring suspension, aluminum diamond plate decking, powder-coated welded steel tube construction. Solar panel cover and ratchet straps for secure travel protection, included. Room for second enclosure on most models for tool storage or additional battery capacity. Options: Tycon BreezePro® wind turbine kit, 2nd frame-mounted aluminum enclosure, light kit, guy line kit, ground anchor kit, second battery bank, and larger solar array. Applications
Construction Sites Temporary Security Temporary Remote Lighting Surveillance Cameras Off-Grid Power Emergency Power Concerts and Festivals Parking Lots Agriculture Short Description
MobileSolarPro® Trailer, 180W, 12/24/56V OUT, 1080W Solar, 800Ah Lit Battery, 9600Wh, Telescope Mast, 5 Port GigE PoE Switch Long Description
The MobileSolarPro® LFP Series delivers a robust, fully assembled portable solar power system, ideal for off-grid installations. Its weatherproof, locking enclosure houses wide-temperature LiFePO4 lithium batteries and supports up to 1440 W of solar input — enough to supply up to 315 W continuous power with 6 hours of peak sun. With a high-efficiency MPPT charge controller (60 A solar / 30 A load at 99% efficiency), this system ensures maximum energy conversion even under varying conditions. Remote monitoring capabilities are built in, allowing users to track solar, battery, load, and temperature data — and to control load output manually or automatically. The system includes a pneumatic four-position aluminum mast (9′ to 18′) that can support up to 110 lb — perfect for mounting cameras, antennas, or other equipment. A 5-port Gigabit PoE switch sits at the top of the mast, offering diverse power outputs (90 W PoE++, 802.3at PoE+, and 24 V passive PoE), plus regulated DC outputs to support a variety of devices. Durability and portability are built in. The trailer frame is constructed from powder-coated welded steel with leaf-spring suspension, diamond-plate decking, and sturdy wheels, making it easy to transport and deploy. Wiring is protected and secured to resist tampering or environmental damage. Whether used for remote surveillance, off-grid communications, emergency lighting, or temporary project sites, MobileSolarPro® LFP offers a turnkey solution: ready to deploy, rugged enough for demanding environments, and powerful enough to run critical equipment — reliably and sustainably. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/RPMS24_LFP%20Series_MobileSolarPro_Spec_Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/8000058_RPMS_Mobile_Trailer_Quick_Install.pdf Pneumatic Mast Guide https://www.tyconsystems.com/usermanuals/8000076_RPMS_Pneumatic_Mast_User_Guide.pdf Case Studies https://tsi.tyconsystems.com/doc/CaseStudies/ White Papers https://www.tyconsystems.com//whitepages/Tycon%20Solar%20White%20Paper%20-%20Wind%20Loading%20Data%20of%20the%20Beast%20MobileSolarPro%20Trailer.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/mobilesolarpro-1
