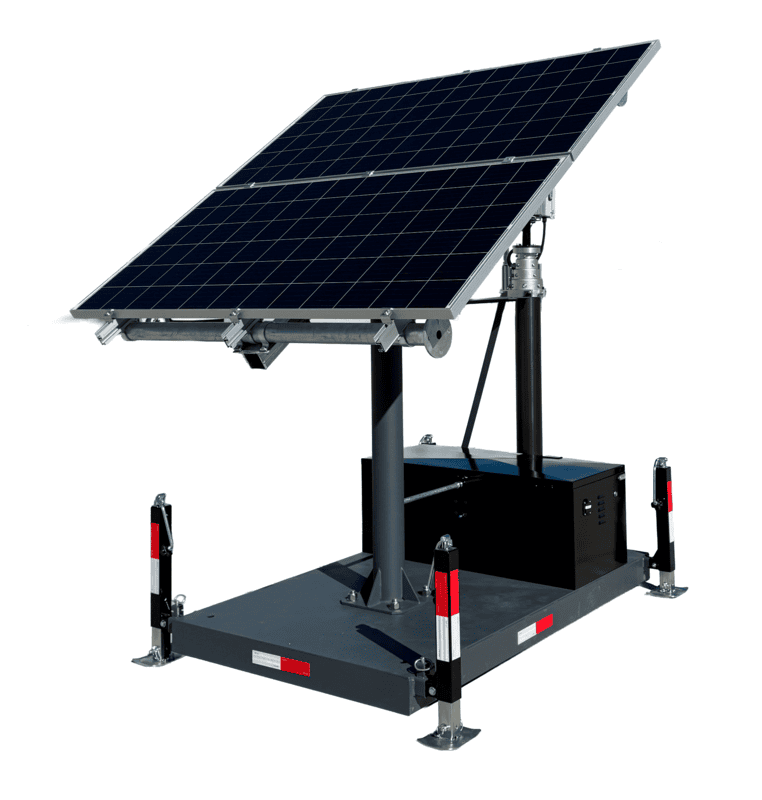

MobileSolarPro® Skid, 150W, 12/24/56V OUT, 720W Solar, 800Ah Lit Battery, 9600Wh,Telescope Mast, 5 Port GigE PoE Switch
$16,749.95
Customize
Store Qty
0 Features
Complete Mobile Solar Remote Power Solution for off-grid operation. Fully assembled, sets up in minutes. Weatherproof outdoor locking enclosure with high-performance sealed lead acid battery and thermostatically controlled ventilation. 720W solar capacity – supports up to 160W continuous power with 6 hours peak sun. MPPT temperature-compensated solar charge controller: 60A solar, 30A load, 99% efficiency. Pneumatic four-position (9ft, 12ft, 15ft, 18ft) locking aluminum extension mast for up to 110lb load. Raises fully in about 90 seconds using the integrated air pump. Regulated 12VDC, 56VDC and unregulated 24VDC output at top of mast. Includes surge-protected Gigabit 5-port PoE Layer 2 switch with one 90W 802.3bt PoE port, three 802.3at PoE+ ports, and one 24V passive PoE port, all at top of pole. Dual CAT6 shielded connections between top of mast and battery enclosure. Complete remote monitoring and control – email alerts and manual/automatic reboot. Monitors solar voltage and current, battery voltage and current, load current, and temperature. Disconnect load power. Heavy-duty galvanized 360° adjustable solar mount with 10–65° tilt. 25-year solar panel guarantee. Dual charging – charge batteries using solar or AC power via convenient backup generator or grid power port. Protected and secured wiring to deter vandals. Can be moved with forklift or pallet jack. Four support/leveling jacks. Galvanized welded steel tube/plate construction. Deck space. Solar panel cover and ratchet straps for secure travel protection included. Options: Tycon BreezePro® Wind Turbine Kit, guy line kit, and ground anchor kit. Applications
Construction Sites Equipment Yards Remote Lighting Agriculture Applications Surveillance Cameras Off-Grid Power on Demand Emergency Power Wireless Equipment Concerts and Festivals Air Quality Sensors Remote Pumping Forest Fire Monitoring Short Description
MobileSolarPro® Skid, 150W, 12/24/56V OUT, 720W Solar, 800Ah Lit Battery, 9600Wh,Telescope Mast, 5 Port GigE PoE Switch Long Description
The MobileSolarPro® Skid-Series delivers a fully assembled, portable solar power system ideal for off-grid use. With up to 720 W solar capacity and a heavy-duty, adjustable 360° tilt/rotation mount, you get robust and reliable power even in remote locations. The system supports up to 160 W continuous power with 6 hours of peak sunlight, and includes a temperature-compensated MPPT solar charge controller (60 A solar / 30 A load) for efficient energy conversion. Built into a weatherproof, locking enclosure, the Skid system is offered with either sealed lead-acid or wide-temperature LiFePO4 battery options. The battery banks deliver dependable energy storage and support long term deployments, while ventilation and rugged construction ensure the system withstands harsh environmental conditions. For added flexibility and ease of integration, each unit features remote monitoring and control, with tracking of solar input, battery status, load draw, temperature, and the ability to automate load or generator activation. Outputs include regulated 12 VDC, 24 VDC and 56 VDC, plus a 5-port PoE Layer 2 switch — perfect for powering cameras, sensors, radios, or network devices directly from the solar system. Whether deployed for temporary lighting, security, remote surveillance, agricultural monitoring, or off-grid communications, the MobileSolarPro® Skid-Series offers a rugged, flexible, and turnkey solar solution — ready to power critical equipment with minimal setup and maximum reliability. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/rpms24_skid-series_mobilesolarpro_spec_sheet_rev-2.-pdf User Guide https://www.tyconsystems.com/usermanuals/8000058_RPMS_Mobile_Trailer_Quick_Install.pdf Pneumatic Mast Guide https://www.tyconsystems.com/usermanuals/8000076_RPMS_Pneumatic_Mast_User_Guide.pdf Case Studies https://tsi.tyconsystems.com/doc/CaseStudies/ White Papers https://www.tyconsystems.com//whitepages/Tycon%20Solar%20White%20Paper%20-%20Wind%20Loading%20Data%20of%20the%20Beast%20MobileSolarPro%20Trailer.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/mobilesolarpro-1
