RPPL1224-20L-35
Key Features:
Share :
Features
- Complete Remote Power Solution for Off-Grid operation
- 4000+ Cycle Life @ 80% discharge LiFePO4 Lithium Batteries
- Weatherproof, UV resistant, outdoor enclosures
- Enclosures can be Wall or Pole Mounted
- Advanced battery charge controller and Embedded BMS for extended battery life
Applications
- Wireless Base Stations and Clients
- Wireless Bridge and Repeaters
- Remote Lighting
- Surveillance Cameras
- Remote Sensors
- Backup Power Systems
Description

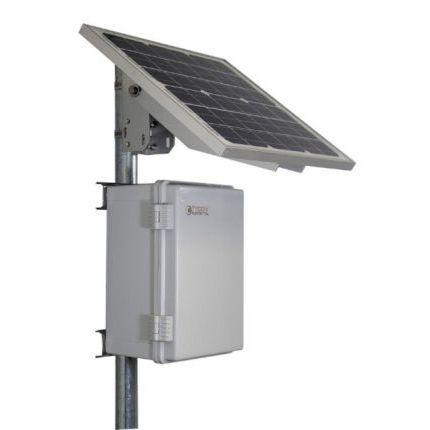

The RemotePro® PL-SM-L series (RPPL) outdoor power systems are designed for applications that require a primary off-grid or backup power source to run various electronics. The sealed and weatherproof 11x7x6” Polycarbonate enclosures hold up to two 12V 10AH batteries. The enclosures are hinged and gasket sealed. They can accept a padlock or tamper seal.
The enclosures can be mounted to a wall or pole with the included mounting bracket system.
The high quality solar panels have a 25year power output guarantee. The solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit.
Features include advanced battery charge controllers with LVD load control. Some of the RPPL-SM-L systems include a controller with built in POE inserter and DCDC converter to supply 24V or 48V PoE from the 12V or 24V battery system. Other models use a 20A PWM controller with parametric LCD display. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling.
Batteries are an LFP (LiFePO4) Lithium type which have superb 80% deep discharge and 4000+ cycle life performance. The batteries have an embedded BMS (Battery Management System) to enable 10+ year battery life.
