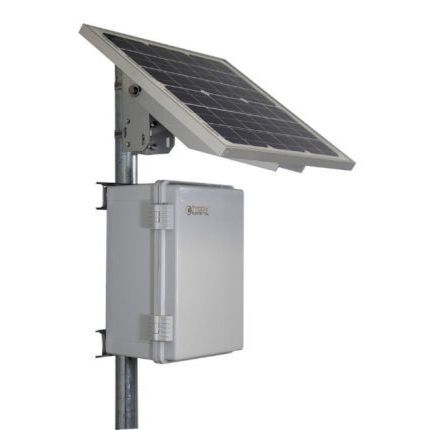

RemotePro 7.5W Cont Pwr Sys, 50W Solar, 12V 20Ah 240Wh LFP Lithium Batt, 12V 8A PWM Sol Chrg Ctrl w/Ld Ctrl 24V 30W Pasv PoE + 12V 1.5A Aux Out, Pole/Wall Mt Outdr Polycarb Encl + SideofPole Solar Mt
$860.95
Customize
Store Qty
0 Features
Complete Remote Power Solution for Off-Grid operation 4000+ Cycle Life @ 80% discharge LiFePO4 Lithium Batteries Weatherproof, UV resistant, outdoor enclosures Enclosures can be Wall or Pole Mounted Advanced battery charge controller and Embedded BMS for extended battery life Applications
Wireless Base Stations and Clients Surveillance Cameras Wireless Bridge and Repeaters Remote Lighting Remote Sensors Backup Power Systems Short Description
RemotePro 7.5W Cont Pwr Sys, 50W Solar, 12V 20Ah 240Wh LFP Lithium Batt, 12V 8A PWM Sol Chrg Ctrl w/Ld Ctrl 24V 30W Pasv PoE + 12V 1.5A Aux Out, Pole/Wall Mt Outdr Polycarb Encl + SideofPole Solar Mt Long Description
The RemotePro® PL-SM-WTL series (RPPL) outdoor power systems are designed for applications that require a primary off-grid or backup power source to run various electronics. The sealed and weatherproof 11x7x6” Polycarbonate enclosures hold up to two 12V 10AH batteries. The enclosures are hinged and gasket sealed. They can accept a padlock or tamper seal. The enclosures can be mounted to a wall or pole with the included mounting bracket system. The high quality solar panels have a 25year power output guarantee. The solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit. Features include advanced battery charge controllers with LVD load control. Some of the RPPL-SM-WTL systems include a controller with built in POE inserter and DCDC converter to supply 24V or 48V PoE from the 12V or 24V battery system. Other models use a 20A PWM controller with parametric LCD display. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. Batteries are a wide temp LFP (LiFePO4) Lithium type which have superb 80% deep discharge and 4000+ cycle life performance. The batteries have an embedded BMS (Battery Management System) to enable 10+ year battery life. Technical Links
Spec Sheet http://www.tyconsystems.com//specsheets/RPPL-SM-WTL%20Series%20Spec.pdf User Guide http://www.tyconsystems.com//usermanuals/8000114%20Rev%203%20RPPL-SM%2011x7x6%20encl-%20quick%20install%20guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/remotepro
