RemotePro 7.5W Cont Pwr Sys, 50W Solar, 24V 432Wh Batt 36Ah, 24V 10A PWM Sol Chrg Ctrl w/Ld Ctrl 48V 30W Pasv PoE + 24V 1.5A Aux Out, Pole/Wall Mt Outdr Lock UV Res Polycarb Encl + SideofPole Solar Mt.
$789.95
Customize
Store Qty
0 Features
Complete Remote Power Solution for Off-Grid operation Weatherproof, UV resistant, outdoor enclosures Enclosures can be Wall or Pole Mounted High Performance Valve Regulated Sealed Lead Acid Batteries Advanced battery charge controller protects against overcharge and over discharge Applications
Wireless Base Stations and Clients Surveillance Cameras Wireless Bridge and Repeaters Remote Lighting Remote Sensors Backup Power Systems Short Description
RemotePro 7.5W Cont Pwr Sys, 50W Solar, 24V 432Wh Batt 36Ah, 24V 10A PWM Sol Chrg Ctrl w/Ld Ctrl 48V 30W Pasv PoE + 24V 1.5A Aux Out, Pole/Wall Mt Outdr Lock UV Res Polycarb Encl + SideofPole Solar Mt. Long Description

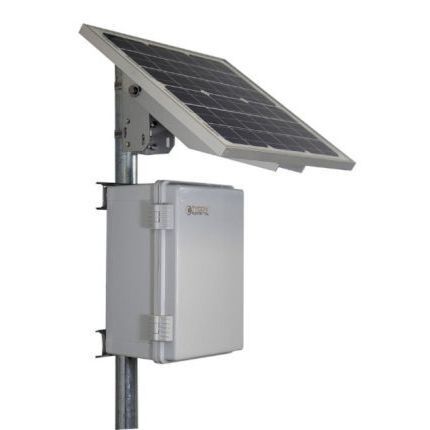

The RemotePro® PL-LG-50 series (RPPL) outdoor power systems are designed for applications that require a primary off-grid or backup power source to run various electronics. The sealed and weatherproof 15x11x6” Polycarbonate enclosures hold up to four 12V 9AH batteries. The enclosures are hinged and gasket sealed. They can accept a padlock or tamper seal. The enclosures can be mounted to a wall or pole with the included mounting bracket system. The high quality solar panels have a 25year power output guarantee. The 50W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. Some of the RPPL-LG systems include a controller with built in POE inserter and DCDC converter to supply 24V or 48V PoE from the 12V battery system. Other models use a 20A PWM controller with parametric LCD display. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. Batteries are an Absorbed Glass Matt (AGM) type which have good all temperature, deep discharge performance. Technical Links
Spec Sheet http://www.tyconsystems.com//specsheets/RPPL-LG-50-RemotePro_Spec_Sheet.pdf User Guide http://www.tyconsystems.com//usermanuals/8000120%20Rev%202%20RPPL%2015x11x6%20SCPOE%20quick%20install%20guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/remotepro
