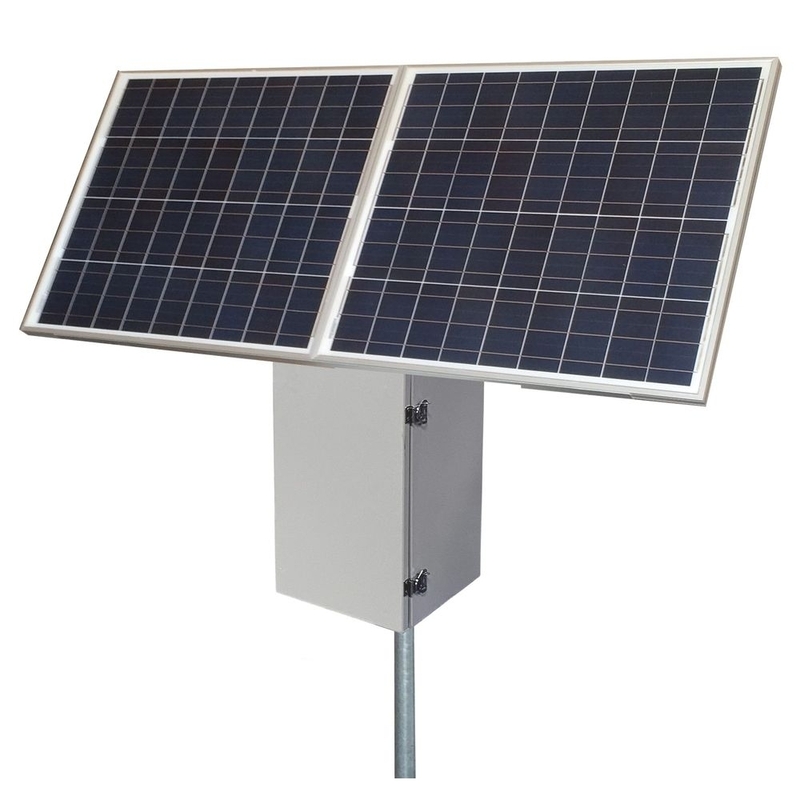

RemotePro 12/24V 43W Cont Pwr Solar Sys, 200W Solar, 12/24V 200Ah 2400Wh LFP Lithium Batt, 30A MPPT TempComp Sol Ctrl/Status Disp/20A Ld Ctrl, 2-4" Pole/Wall Mt Lg Steel Lock Encl w/1U Rackmt + SidePole Sol Mt, PwrVent
$3,331.95
Customize
Store Qty
0 Features
Complete 200W Remote Power Solution for Off-Grid Operation 4000+ Cycle Life @ 80% discharge LiFePO4 Lithium Batteries Weatherproof Outdoor Enclosures accommodate up to 400Ah Battery Enclosures can be Wall or Pole Mounted (pole not included) MPPT Solar Charge Controllers with RS485 Interface Thermostatically Controlled Ventilation Applications
Wireless Base Stations Remote Lighting Wireless Bridge and Repeaters Off-Grid Power Surveillance Cameras Backup Power Short Description
RemotePro 12/24V 43W Cont Pwr Solar Sys, 200W Solar, 12/24V 200Ah 2400Wh LFP Lithium Batt, 30A MPPT TempComp Sol Ctrl/Status Disp/20A Ld Ctrl, 2-4" Pole/Wall Mt Lg Steel Lock Encl w/1U Rackmt + SidePole Sol Mt, PwrVent Long Description
The RemotePro® 170W Lithium Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates. The enclosures can be mounted to a wall or pole with the included mounting bracket system. The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting system. Features include advanced MPPT battery charge controllers with LVD load control and RS485 interface. Batteries are a wide temp LFP (LiFePO4) Lithium type which have superb 80% deep discharge and 4000+ cycle life performance. The batteries have an embedded BMS (Battery Management System) to enable 10+ year battery life. Systems can be configured as 12V or 24V battery voltage. The outdoor enclosures are powder coated steel or aluminum. They are hinged and gasket sealed with a locking closure that accepts a common padlock for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C. The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller. Technical Links
Spec Sheet http://www.tyconsystems.com//specsheets/RemotePro%20200W%20Lithium%20Solar%20Spec%20Sheet.pdf User Guide http://www.tyconsystems.com//usermanuals/8000101_RemotePro-RPSTL_12-24M_quick_install_guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/remotepro
