24V 120W OUT Battery Charger, 120/240VAC IN, w/ US AC Power Cord, XT DC Connector
$64.95
Customize
Store Qty
71 Features
24VDC AC Battery Charger 120W Total Power Over-Voltage, Over-Current, Over-Temp, Overload, Short-Circuit Protections LED indicator: Red=Charging, Green=Battery Full Wide temperature operation range Small form factor, low cost CE and FCC Certifications Applications
Wireless Base Stations Cellular Base Stations Surveillance Systems Battery Backup Systems Short Description
Tycon® 24V 120W battery charger and XT DC connector for UPS, telecom and remote power battery systems. Long Description

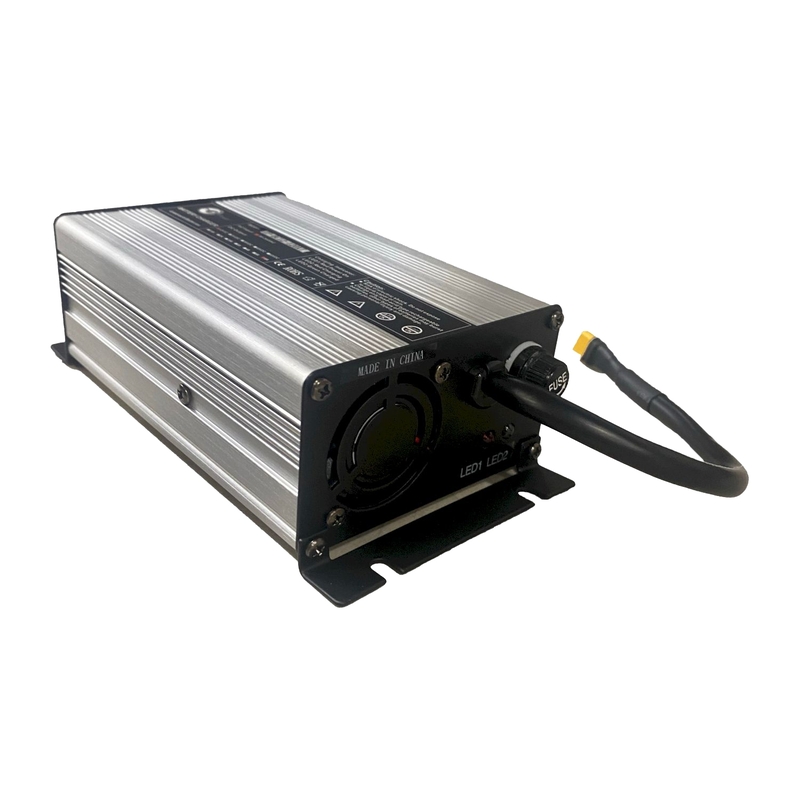

The TP-BC24-120XT battery charger provides up to 120W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries and also Lithium batteries with a BMS that accept Lead Acid charging voltages. The charger has various protections for short-circuit, over-load, over-voltage, over-current and over-temp. It operates over a wide temperature range. It includes an XT30 connector and pigtail cable for quick disconnect. There is an LED which indicates charging (Red) or battery full (Green). The unit has a right angle removable AC cord with a North American 3 Prong Plug. The units are auto-ranging so they can work from 90VAC to 264VAC. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/TP-BC24-120XT%20Battery%20Charge%20Controller%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/8000118_TP-BC12_24-120XT_Battery_Charger_User_Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/upspro
