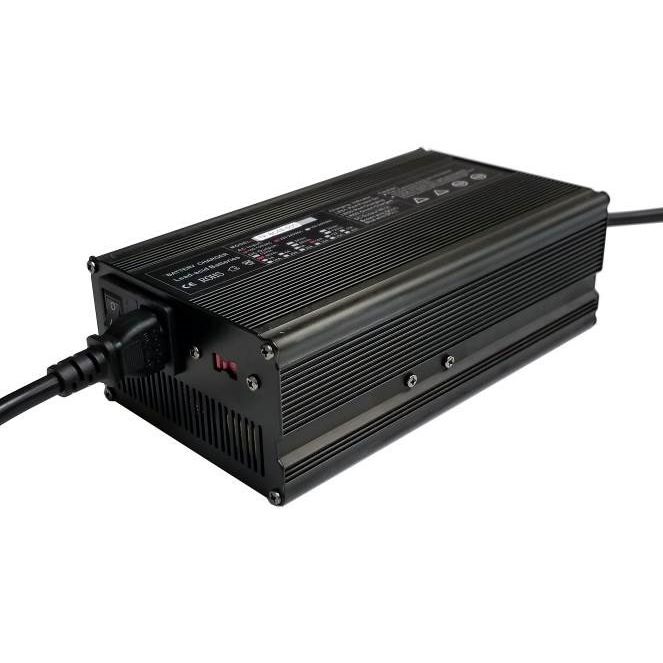

63V 600W OUT Battery Charger, 120/240VAC IN, w/ US AC Power Cord, XT DC Connector
$194.95
Customize
Store Qty
55 Features
63V 600W battery charger Over-Voltage, Over-Current, Reverse-Current, Over-Load, and Short-Circuit protections LED indicator: Red = Charging, Green = Battery Full/Float Charge CE Certified Applications
Wireless Base Stations Cellular Base Stations Surveillance Systems Battery Backup Systems Short Description
63V 600W OUT Battery Charger, 120/240VAC IN, w/ US AC Power Cord, XT DC Connector Long Description
The TP-BC63-600XT battery chargers provide up to 600W of total charging power. It is specifically designed to power the PV input of an MPPT charge controller in order to charge 12V to 48V battery arrays. The MPPT charge controller handles the charging parameters of the specific batteries and the TP-BC63 supplies the power. The charger has various protections for reverse current, short-circuit, over-load, over-voltage, and over-current. There is an LED which indicates charging (Red) or battery full (Green). The unit comes with a removeable AC cord with a North American Plug. The units can work from 90VAC to 240VAC (selectable via switch). Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/TP-BC63-600XT%20Battery%20Charger%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/8000119_TP-BC63-500_900XT_Battery_Charger_User_Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/upspro
