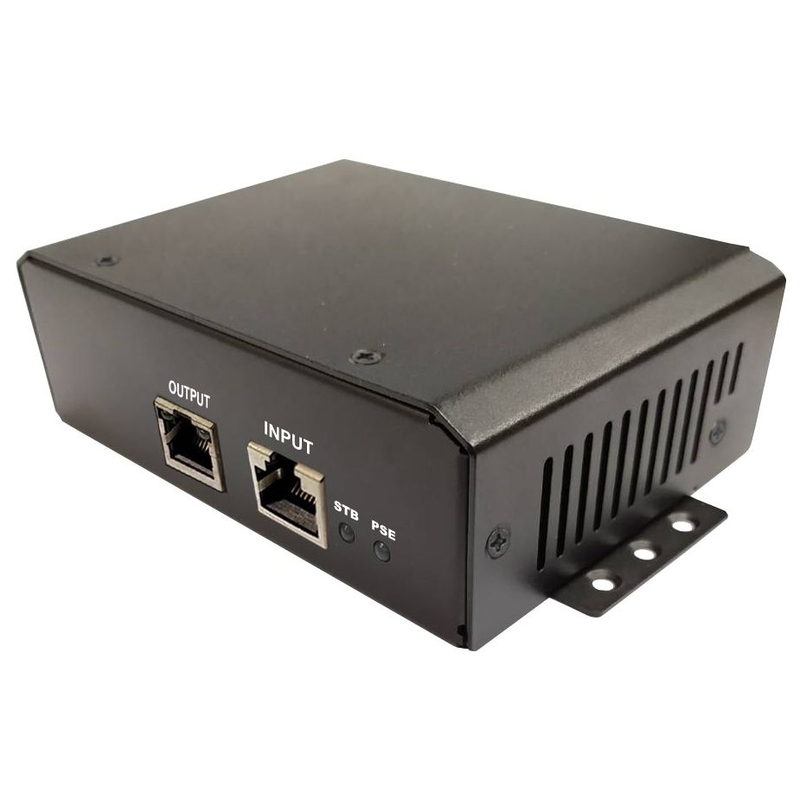

TP-DC-1256GD-VHP
Key Features:
Share :
Features
- Input Voltage 10VDC to 60VDC
- 8 wire (4 Pair) 56VDC High PoE Output
- High Power Output to 70W
- Dual DC Inputs for Connecting 2 Power Sources
- 5 Gigabit Data Throughput
- Low Voltage Disconnect Feature
- Short Circuit, Over Current and reverse/Over Voltage Protection
- Industrial Temperature Range to 70C
Applications
- 12VDC / 24VDC Remote Power Systems
- 48VDC or -48VDC Remote Power Systems
- Ubiquiti airFiber™ Antennas
- Axis Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras
- High PoE 4 Pair Powered Cameras and Radio’s
Description
The 5 Gigabit compatible TP-DC-1256G-VHP and TP-DC-1256GD-VHP are very high power DC to DC converters /
PoE inserters designed especially for Ubiquiti airFiber™ antenna systems and other systems which require high power
passive or active PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC
PoE power on all 8 Ethernet wires (4 Pair).
The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The
units input/output is isolated so they work in a negative ground or positive ground system. They have two DC inputs for
connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage,
surge, short circuit and overload. The units have a metal housing and come complete with a DIN Rail mounting kit for
mounting to a standard DIN rail.
