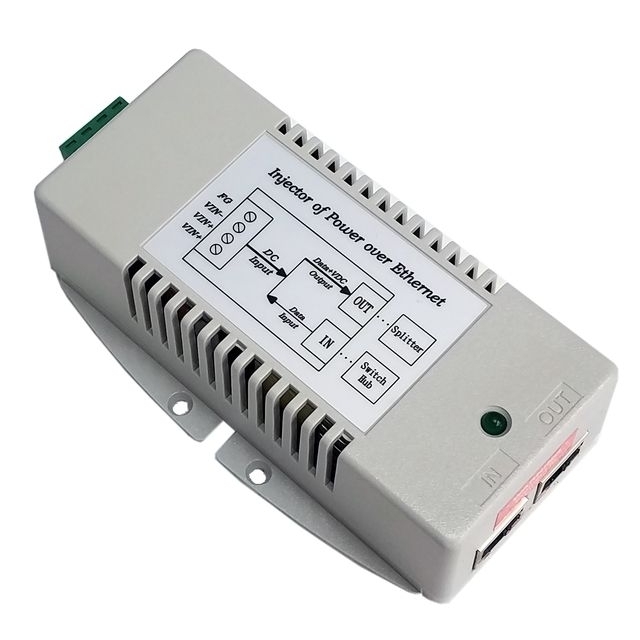

TP-DCDC-1224G-4P
Key Features:
Share :
Features
- Input Voltage 9-36VDC
- 24V Gigabit Passive 4 Pair PoE Output
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Inserter
- High Power up to 24W
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation to 70C
- Built-in Low Battery Disconnect and Surge Protection
Applications
- Remote Power Systems
- Solar Lighting
- Solar Power Applications
- Telecom Power Applications
Description
The TP-DCDC-1224G-4P Gigabit DC to DC converters offered by Tycon Power Systems are a low cost and high
efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage
source like a battery system or vehicle. They have an integrated 4 pair PoE injector to apply the power and data output
to the CAT5 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected.
They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. Input and
outputs are isolated so + or – ground is OK.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the
shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have
various protections for surge, short circuit and overload. The units have power outputs up to 24W.
