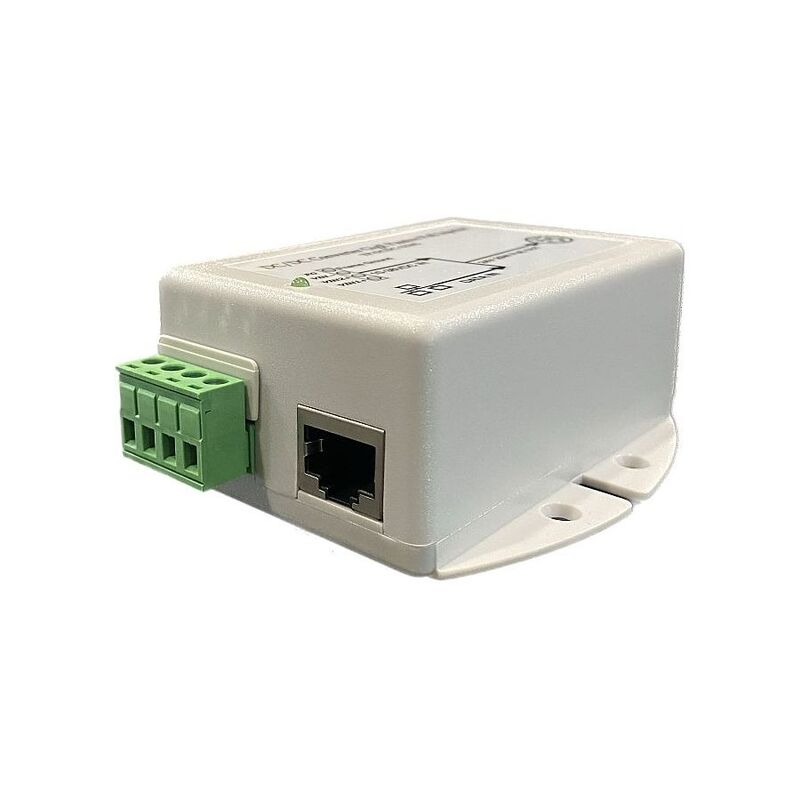

TP-DCDC-1248GAD
Key Features:
Share :
Features
- Input Voltage 9-36VDC
- IEEE 802.3af Compliant 17W Mode A PoE Output
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Inserter
- Low Self Consumption Power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact Size – Maximize Available Space
Applications
- 12V / 24V Battery Systems, Vehicle Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- PoE Lighting Applications
Description
The TP-DCDC-1248GAD Gigabit DC to DC converters / PoE Injectors offered by Tycon Power® are a low cost and
high efficiency solution for those requiring IEEE802.3af Power over Ethernet from a 12VDC or 24VDC voltage source
like a battery system or vehicle. They have an integrated Mode A PoE injector to apply the power and data output to
the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting
2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial
applications.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45
output jack. They work by supplying power on Ethernet pins 1,2(V+) and 3,6(V-). They have various protections for
surge, short circuit and overload. The units have power outputs up to 17W.
