TP-DCDC-2448-HP
Key Features:
Share :
Features
- Input Voltage 12VDC, 24VDC or 48VDC
- Passive PoE Output voltage 24VDC or 56VDC
- IEEE802.3at Model Available
- High Power up to 35W
- Integrated PoE Inserter
- Low self consumption power
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- High Temperature Operation
Applications
- 12V, 24V and 48V Battery Systems
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
Description

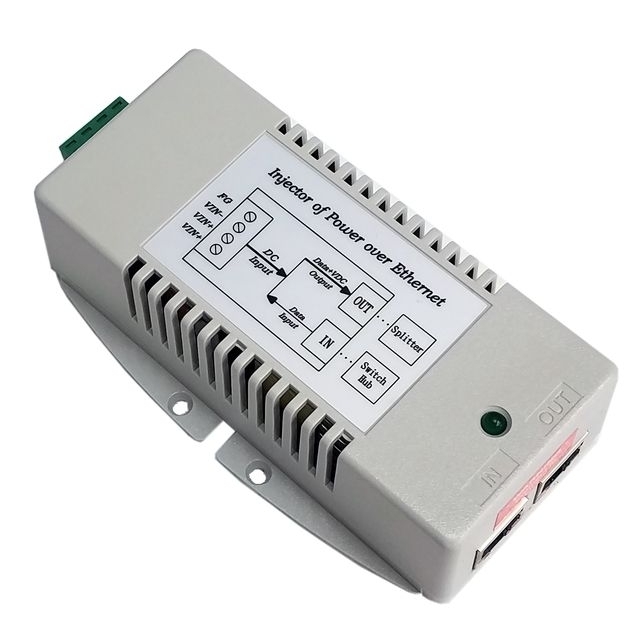

The TP-DCDC-HP Series of DC to DC converters offered by Tycon Power® are a low cost and high reliability solution
for those requiring 24VDC or 56VDC Power over Ethernet voltage from a 12V, 24V or 48V battery system. They have
an integrated PoE injector. Passive PoE and 802.3at models are available. They have two inputs for connecting 2
power sources, like a primary and backup power source.
They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for
surge, short circuit and overload. The units have a power output of up to 35W. The input and output are isolated so the
units can accept minus voltage on input and can be wired for positive voltage on the output for those systems which
are negative voltage based.
If the remote device does not support power over Ethernet, splitters (POE-SPLT-S) are available to split the data and
DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER-S cable can be used.
