DC PoE Injector, 18-36VDC IN, 56V 70W 4Pair GigE Passive PoE OUT
$147.95
Customize
Store Qty
68 Features
DC to DC Converter Input Voltage 24VDC (18-36VDC) or 48VDC (36-72VDC) Dual DC Inputs for Connecting 2 Power Sources 8 Wire 56VDC Passive PoE Output High Power Output to 70W Gigabit Data Throughput Low Self Consumption Power (<2W)
Short Circuit, Over Current and Reverse/Over Voltage Protection Industrial Temperature Range Applications
24VDC Remote Power Systems 48VDC or -48VDC Remote Power Systems Ubiquiti airFiber™ Antennas High PoE Compatible Security Cameras Short Description
DC PoE Injector, 18-36VDC IN, 56V 70W 4Pair GigE Passive PoE OUT Long Description

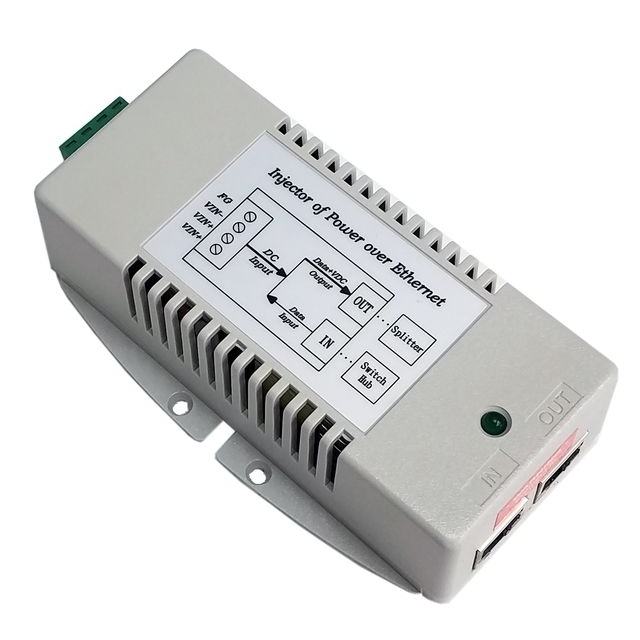

The Gigabit compatible TP-DCDC-2456G-VHP and TP-DCDC4856G-VHP area special very high power DC to DC converters / PoE inserters designed especially for Ubiquiti airFiber™ antenna systems and other systems which require high power passive PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-DCDC-xx56G-VHP_POE_Ins-Conv_UBNT_AirFiber_Spec_Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_User-Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe 3d_images
TP-POE-HP - TP-DCDC-HP large housing 64mm.glb
