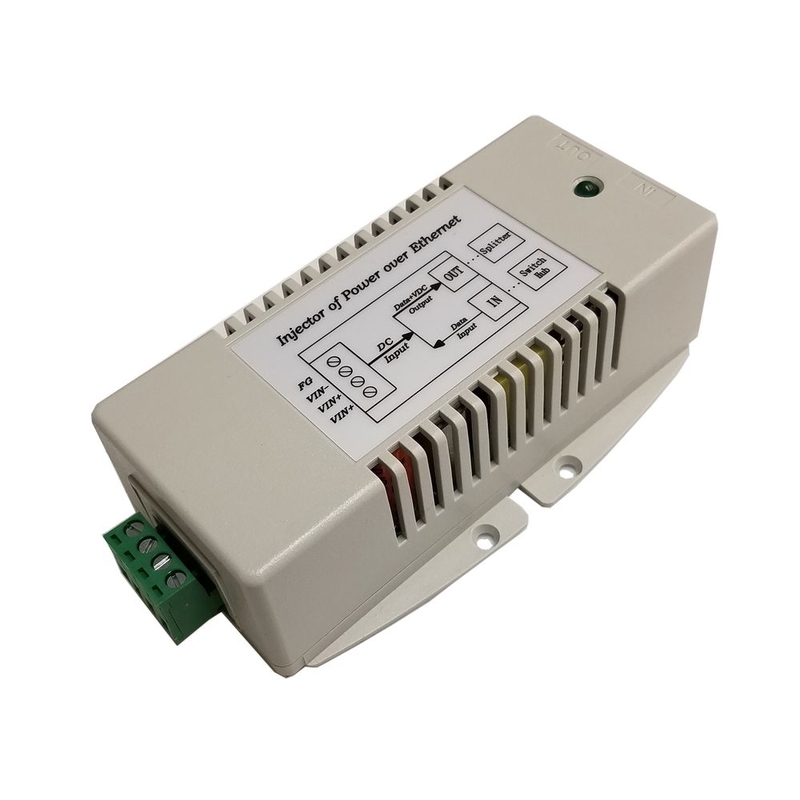

DC PoE Injector, 18-36VDC IN, 56V 70W GigE 4Pair 802.3bt PoE OUT
$184.95
Customize
Store Qty
2174 Features
DC to DC Converter Input 18VDC to 36VDC 8 wire (4 Pair) 56VDC 802.3bt PoE Output Output up to 70W 10G Data Throughput up to 80m Dual DC Inputs for Connecting 2 Power Sources Low Voltage Disconnect Feature Short Circuit, Over Current and Reverse/Over Voltage Protection Industrial Temperature Range -40 to 70C Applications
12VDC / 24VDC Remote Power Systems 48VDC or -48VDC Remote Power Systems 802.3bt PoE 4 Pair Powered Cameras and Radio’s 802.3at PoE Powered Devices PoE Lighting Applications Short Description
DC PoE Injector, 18-36VDC IN, 56V 70W GigE 4Pair 802.3bt PoE OUT Long Description
The 10G compatible TP-DCDC-1256GD-BT and TP-DCDC-2456GD-BT are 802.3at/bt compatible high power DC to DC converters/PoE inserters designed for operation in industrial environments. The inserters conform to the new IEEE802.3bt Power Over Ethernet standards for industry compatibility. The PoE inserters supply 56VDC PoE power on all 8 Ethernet wires (4 Pair). They are backward compatible with 802.3at so they will safely power 802.3at and 802.3af devices in addition to the new 802.3bt devices. The wide input voltage range (10VDC to 60VDC) of the TP-DCDC-1256GD-BT makes these units universal in battery powered applications. The TP-DCDC-2456GD-BT is a lower cost option for applications with 18-36VDC available. The input and output are isolated so they work in a negative ground or positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage, surge, short circuit and overload. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-DCDC-xx56GD-BT%20%20%20802.3bt%2070W%20PoE%20Inserters%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_User-Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe 3d_images
TP-POE-HP - TP-DCDC-HP large housing 64mm.glb
