AC or DC PoE Injector, 22-35V AC/DC IN, 56V 90W 5G 802.3bt PoE OUT
Key Features:
• DC to DC Converter
• 22-35VAC/VDC Input
• 802.3bt 90W Output
• Built-In Surge Protection
• DIN Rail Mounting Adapters Included
Product Details
Features
- 22-35VAC/VDC Input, 802.3bt 90W Output
- Industrial Temperature Range: -40 to +70C
- Up to 5Gigabit Data Passthru with Surge Protection
- DIN Rail Mounting (Adapters Included)
Applications
- 802.3bt PoE from Legacy 24VAC Power Sources
- 24VDC Remote Power Systems
- IEEE802.3bt Industry Standard Device Power from Batteries
- PoE Lighting Applications
Description

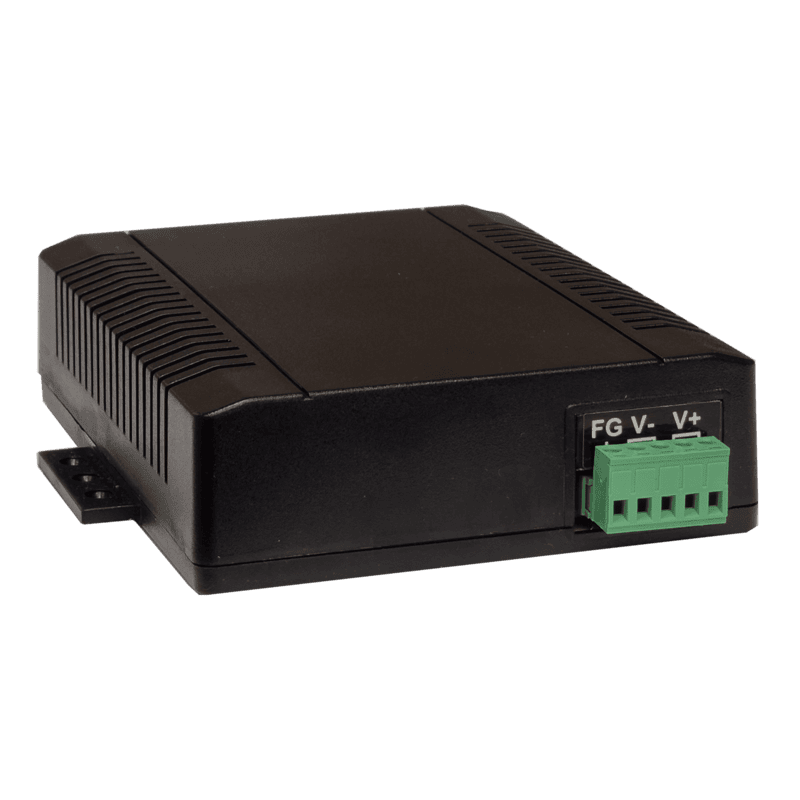

The TP-DCDC-A2456GD-BT is a 5Gbps high power DCDC converter and PoE injector that accepts 22-35VAC
or VDC input. It features a wide operating temperature range (-40 to +70C) and a high power 802.3bt 90W output.
The unit has dual AC/DC inputs for maximum flexibility. The green DC connector accepts wires up to 12AWG. The
“FG” input is used to provide chassis or earth ground.
The device is fan-less and uses natural air flow for cooling. It comes with DIN rail adapters to provide mounting to a
standard DIN Rail commonly used in industrial installations. It can also be wall mounted.
