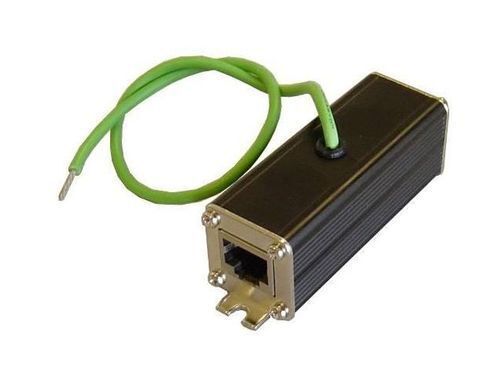

GigE PoE Lightning/Surge Supressor, 46V Clamp Voltage, for 24V Passive PoE equip, 5KA
$29.95
Customize
Store Qty
333 Features
10/100/1000Mb Data Rate CAT5/6 compatible, all 8 pins protected Shielded jacks and full metal housing Complies with IEC 61643-21 Standard UL497B Listed (TP-ESP-1000-POE) 24V or 48V PoE model available Applications
Wireless Access Points and Client Devices IP Phone and Security Camera Systems Industrial Control Systems Short Description
GigE PoE Lightning/Surge Supressor, 46V Clamp Voltage, for 24V Passive PoE equip, 5KA Long Description
The ESP-POE are a low cost Ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. They have a full metal body for improved EMI suppression and have integral mounting feet and separate ground wire. They are designed for indoor or outdoor use inside a weatherproof enclosure. The ESP-1000-POE is compatible with 10/100/1000M PoE systems up to 57V. The ESP-1000-POE24 is compatible with 10/100/1000M PoE systems up to 30V. The ESP-100-POE24 is for 10/100M passive PoE systems up to 30V. Protection is provided on all 8 CAT5/6 wires. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-ESP-1000-POE_Surge_Protector_Spec_Sheet.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe 3d_images
TP-ESP-1000-POE.glb
