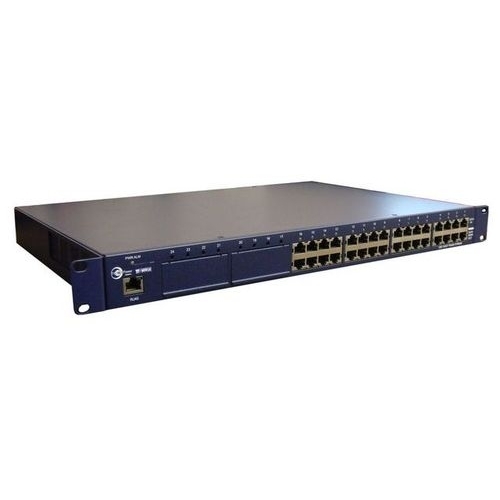

16 Port GigE Rack Mount Mid Span, 802.3af/at, 576W, AC/DC Powered, Mgmt
$1,506.95
Customize
Store Qty
7 Features
IEEE 802.3at/af High Power Gigabit Midspan PoE Injector Up to 40W per individual port Accepts AC or DC input Supports non-standard (passive) devices Configuration and status via front panel RJ45 port or network 1U standard rack mount (19") Remotely powers equipment via CAT5 cable up to 100m Applications
Wireless Access Points and Client Devices IP Phone and Security Camera Systems Power network devices from a central network room Short Description
16 Port GigE Rack Mount Mid Span, 802.3af/at, 576W, AC/DC Powered, Mgmt Long Description
The TP-MS616 rack mount 16 port mid span PoE power sources are used for supplying PoE and data to up to 16 devices multiple devices from a central location such as an operations room. The PoE devices feature a separate data-in port coupled with a data out/PoE port. The PoE function is fully IEEE802.3at/af compliant and supports Gigabit Ethernet. The included PC software allows for configuration of the individual ports and for displaying port status through the RJ45 management port or network. Ports can be enabled/disabled and configured for forced PoE output (Passive PoE) or IEE802.3at/af detection. PoE DC Voltage (55V) is supplied on 2 pairs. Maximum power output per rack mount unit is 576W. The individual outputs are overload and short circuit protected. The 1U rack mounting accommodates 19" racks with included brackets. Technical Links
Spec Sheet https://tyconsystems.com/specsheets/TP-MS616%20Midspan%20Injector%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/TP-MS616_User_Guide.pdf Software https://www.tyconsystems.com/software/TP-MS316%20Software.zip KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe
