DC PoE Injector, 48V 802.3af/at IN, 18V or 24V 24W GigE Passive PoE OUT
$59.95
Customize
Store Qty
183 Features
Converts 48V 802.3af/at PoE Input to 18V or 24V Passive PoE Output PoE output switchable between 18VDC and 24VDC Allows non-compliant equipment to run on 802.3af/at PoE switches Remotely powers equipment through CAT5 cable up to 100m Short circuit, over current, and over voltage protection 10/100 and Gigabit Ethernet operation High temperature operation Compact size – floor / desktop / wall mount Applications
Wireless Access Points and Client Devices IP Phone and Security Camera Systems Short Description
DC PoE Injector, 48V 802.3af/at IN, 18V or 24V 24W GigE Passive PoE OUT Long Description

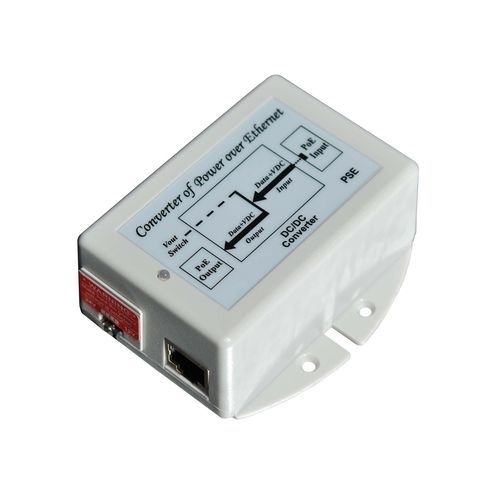

The TP-POE-1824 is a unique Power over Ethernet adapter which converts an 802.3af/at 48VDC PoE input into a 18V or 24VDC regulated passive PoE output. The PoE output voltage is external jumper selectable and capable of up to 25W power output. The PoE input is IEEE 802.3af/at compatible so the TP-POE-1824 will work with standard 802.3af/at compliant PoE switches or routers. The TP-POE-1824 enables the powering of passive PoE devices from standard 802.3af/at PoE switches, which eliminates the extra expenses usually required to power non compliant equipment. There are two models available: TP-POE-1824 which is 10/100MB compatible and has a 12W output. TP-POE-1824G which is 10/100/1000MB compatible and has a 24W output. They accept data-in and 802.3af/at PoE to a shielded RJ45 Jack and provide data-out and 18V or 24V PoE on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet). They have various protections for surge, short circuit, overload and overvoltage. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-POE-1824%20802.3af-at%20Converter%20Spec%20Sheet.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe 3d_images
