TP-POE-2456GD
DC PoE Injector, 22-36V PoE IN, 35W GigE 802.3af/at PoE OUT
Key Features:
• PoE Injector
• 24VDC Passive PoE Input
• 56VDC 802.3af/at 35W PoE Output
• Gigabit Compatible
• PoE output up to 35W
$88.95
Share :
Product Details
Features
- Converts 24VDC Passive PoE to 56VDC 802.3af/at 35W PoE Output. Gigabit Compatible
- Run 802.3af/at equipment from 24VDC Passive PoE
- switches like Tycon® TP-SW5G-NC / TP-SW8-NC or Ubiquiti TOUGHSwitch™
- PoE output up to 35W
- Remotely Power Equipment thru CAT5/6 Cable up to 100m
- Short Circuit, Over Current and Over Voltage Protection
Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- PoE Lighting Applications
Description

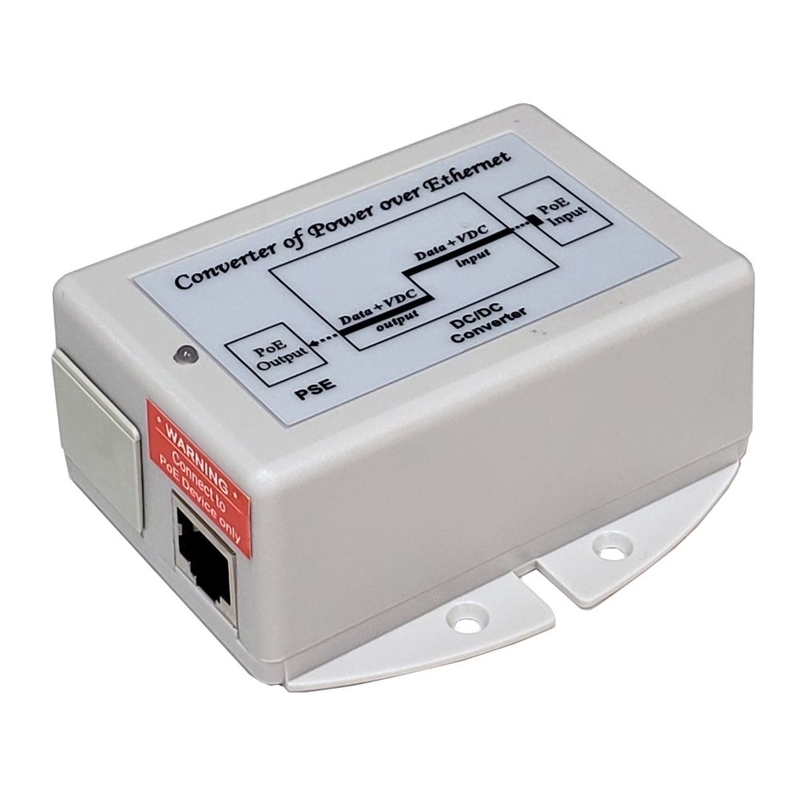

The TP-POE-2456GD is a unique Gigabit Power over Ethernet adapter which converts a 24VDC passive PoE input to
an 802.3af/at 56VDC PoE output. The only connections required are CAT5/6 cables. The IEEE 802.3af/at compliant
PoE output is capable of up to 35W power output. The PoE input is 22V to 36VDC passive PoE so the TP-POE2456GD is perfect for running IP PoE Cameras or other PoE devices from passive PoE switches like the Tycon® TPSW5G-NC / TP-SW8-NC or Ubiquiti TOUGHSwitch™.
The units supply power to the remote device on Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports
distances up to 100m (328 feet).
They have various protections for surge, short circuit, overload and overvoltage.
