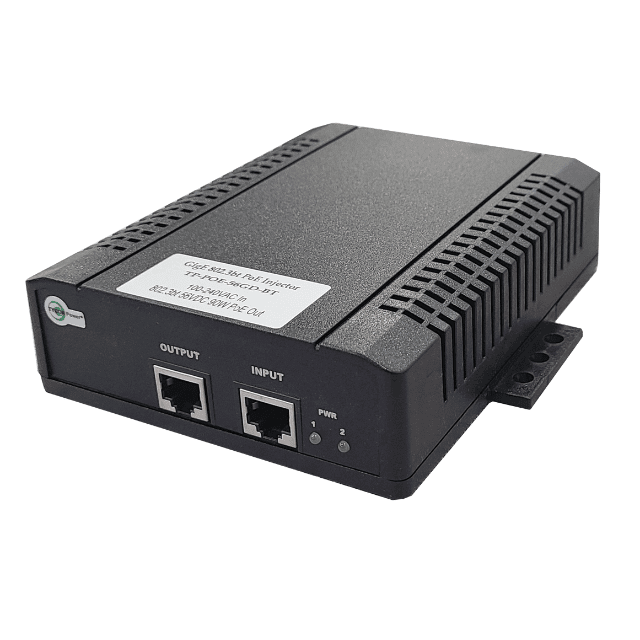

AC PoE Injector, 100-240VAC IN, 56V 90W 4Pair GigE 802.3bt PoE OUT
Key Features:
• PoE Power Injector
• 90W 802.3bt Output Power
• Built in Ethernet and AC Surge Protection
• DIN Rail Mounting Clips Included
• Supports Distances Up To 100m
Product Details
Features
- 90W 802.3bt Output Power
- Remotely Power Equipment thru CAT5+ Cable up to 100m
- Built in Ethernet and AC Surge Protection
- Autoranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- 10/100/1000/5000Mb Compatible
- High Temperature Industrial Operation -40C to +70C
- DIN Rail Mounting clips included
Applications
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- PoE Lighting Applications
Description
The TP-POE-56GD-BT Power over Ethernet Power Injectors offered by Tycon Power® are quality 5 Gigabit
midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a
shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by
supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328
feet).
The units are auto-ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply
regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They
have total power output up to 90W. They are fully compatible with the IEEE802.3bt specification which means they are
backward compatible with 802.3at PoE.
