TP-POE-HP-48GDx2
Key Features:
Share :
Features
- Input Voltage 12VDC, 24VDC or 110VAC
- Dual 802.3af/at outputs
- High Power Output to 70W
- Surge Protected to 15kV
- Dual DC Inputs for Connecting 2 Power Sources
- 10/100/1000 Data Compatibility, Shielded Connectors
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- Industrial Temperature Range, DIN Rail Mountable
Applications
- 12VDC or 24VDC Remote Power Systems running on batteries
- 110/220VAC Backup Power Systems
- Power a Camera and Wireless using a single PoE Injector
- Power a Wireless AP and Backhaul using a single PoE injector
- PoE Lighting Applications
Description

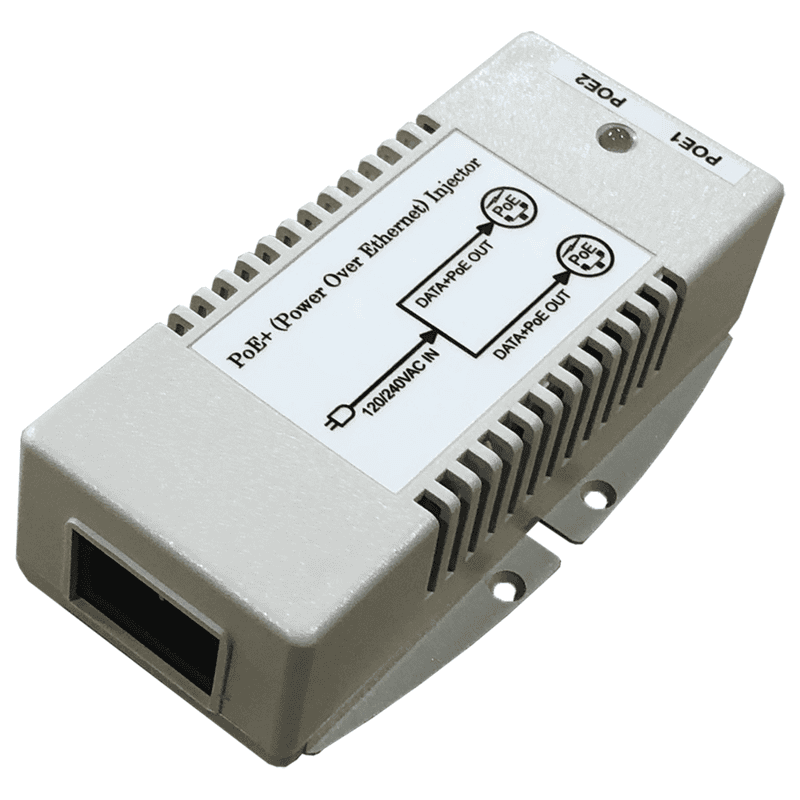

The TP-DC-xx48GDX2-HP and TP-POE-HP-48GDX2 are unique high power PoE injectors with Dual 802.3af/at
compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between
the devices is handled by the injector so no PoE switch is required.
There are models that will run on 12VDC or 24VDC as well as 110/220VAC grid power. The different models have
different total combined outputs up to 70W.
They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various
protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects
sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.
The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.
