AC PoE Injector, 100-240VAC IN, 56V 100W 4Pair GigE Passive PoE OUT
$184.95
Customize
Store Qty
0 Features
Replaces TP-POE-HP-56G. New PN. 112W PoE Injector Remotely powers equipment through CAT5/6 cable up to 100m 10/100/1000/5000Mb compatible Autoranging switching power supply Built-in AC surge protection Short circuit, over current, and over voltage protection High temperature industrial operation Compact size – floor / desktop / wall mount Applications
Wireless Access Points and Client Devices IP Phone and Security Camera Systems Short Description
AC PoE Injector, 100-240VAC IN, 56V 100W 4Pair GigE Passive PoE OUT Long Description

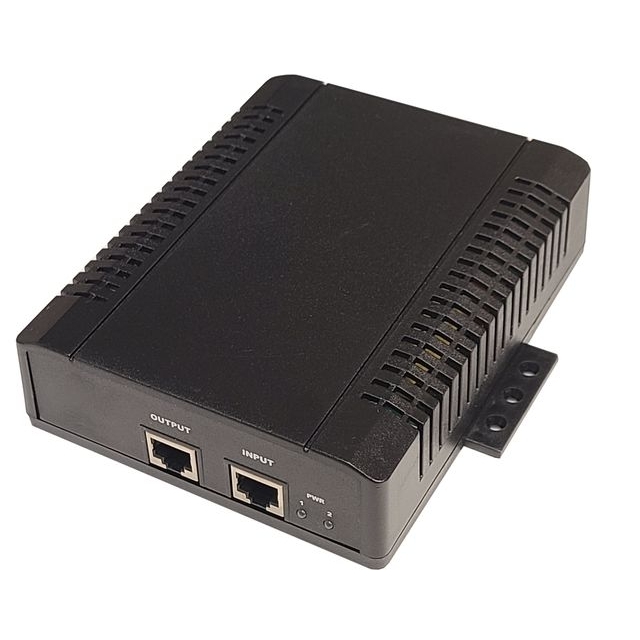

The TP-POE-HP-56G-100W Power over Ethernet Power Sources offered by Tycon Power® are quality 5 Gigabit midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328 feet). The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They have total power output up to 112W. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-POE-HP-56G%20Power%20Source%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_User-Guide.pdf KnowledgeBase
