AC PoE Injector, 100-240VAC IN, 56V 60W 4Pair GigE Passive PoE OUT
$78.95
Customize
Store Qty
0 Features
Replaces TP-POE-HP-56G-FBN. New PN. 60W PoE Output Autoranging Switching Power Supply 10/100/1000Mb Gigabit Compatible Remotely powers equipment via CAT5 cable up to 100m Built-in Ethernet and AC surge protection Short circuit, over current, and over voltage protection High temperature operation to 60C DIN Rail mountable Applications
Wireless Access Points and Client Devices IP Phone and Security Camera Systems Short Description
AC PoE Injector, 100-240VAC IN, 56V 60W 4Pair GigE Passive PoE OUT Long Description

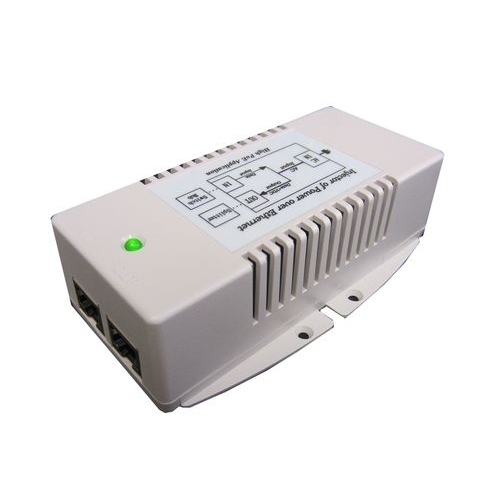

The TP-POE-HP-56G-60W Power over Ethernet Power Source offered by Tycon Power® is a quality midspan power source for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on all 8 Ethernet pins. The Ethernet spec supports distances up to 100m (328 feet). The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. The TP-POE-HP-56G-60W has an output power of 60watts. The output voltage is 56VDC with load regulation within 5%. The units can be DIN rail mounted. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-POE-HP-56G-FBN%20Spec%20Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_User-Guide.pdf KnowledgeBase
