TP-SW16GBT/AT/PSV-U
Share :
Features
- Industrial Strength (-30C to +65C Operating Temperature)
- 10/100/1000 Gigabit Ethernet and 2.5G Fiber
- 120/240VAC and 57VDC Redundant Power
- Ultimate Flexibility for Broadband and Security Integrators:
- Port 1-4 802.3bt 90W or Passive 54V 30W PoE
- Port 5-16 802.3at 30W or Passive 24V 15W PoE
- Port 17-20 1.0/2.5Gb SFP Single/Multimode Fiber ports - L3 Manageable via Console Port or IP or OOB Port
- Surge Protected Inputs, Thermostatically Controlled Cooling Fans
- Rack Mount, Wall Mount or Desktop
- RS485 Interface with 24VDC 0.25A Output
- Simplified User Interface with Advanced Mode
Applications
- Outdoor Network Installations
- PoE Lighting Applications
- Off-Grid Systems
- Factory Floor Networks
- Cameras and Wireless Radios
Description

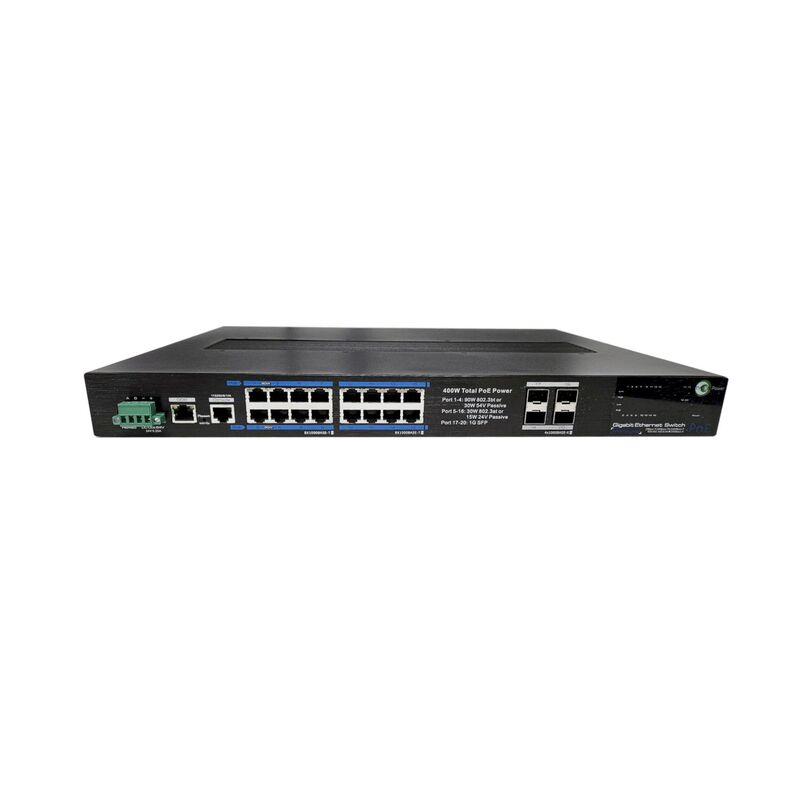

The TP-SW16GBT/AT/PSV-U Power over Ethernet (PoE) 20 port Gigabit switches offered by Tycon® are fully
automatic high speed Layer 3 Ethernet manageable switches. The switch has user defined PoE ports based on the
following configurations:
- 4x 802.3BT 90W or 54V 30W Passive PoE ports
- 12x 802.3AT or 24V 15W Passive PoE ports
- 4x 1.0/2.5Gb SFP fiber ports
This feature enables powering different devices from the same PoE Switch. The SFP ports accept standard single
mode or multimode fiber transceivers or RJ45 Transceivers to provide 4 additional Ethernet ports.

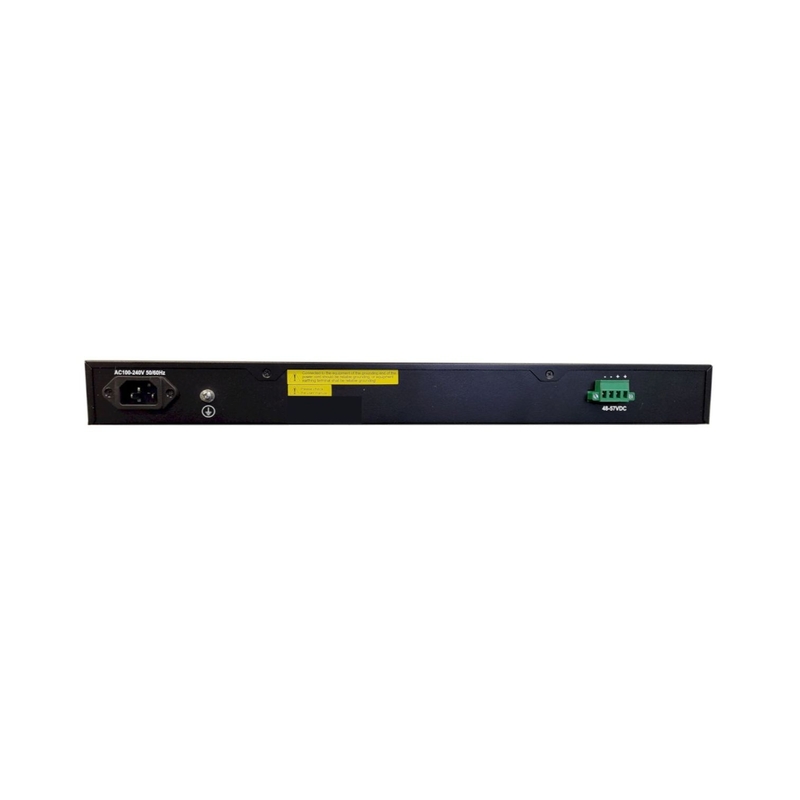

The switch has two power inputs and can be powered by 120/240AC or with 48-57VDC. DC power can be used as
backup or primary power. Total PoE power output is 400W.
The PoE ports are manageable via the user interface or the console port. The switch features security protocols like
SSH for secure access of the switch command interface. The command interface can be controlled via web browser,
command line interface (CLI), TELNET, SSH or SNMP.
The switch supports PoE watchdog features which can detect and restart a connected device that stops working. The
switch also supports Q-PoE (Quick PoE) to supply PoE power as soon as the switch is powered up instead of waiting
for the switch to complete its boot sequence.
With L3 features, the switches provide better manageability, security, Quality of Service (QOS) features and
performance. VLAN, Port Mirroring, Port Isolation, IGMP Snooping, LLDP, Storm Control, Access Control List (ACL)
and PoE management are just some of the features available with this Industrial PoE Switch.
RIP, OSPF, DHCP, Spanning Tree, Jumbo Frames, Ring Topology are also supported.
The units are compatible with Category 5 or higher Ethernet cables with network distances up to 100m. The optical
range for fiber ports is up to 120Km. The RJ45 connectors are shielded and grounded to the case. The units have
surge protection on all ports. They have a wide operating temperature range for outdoor and industrial applications.
