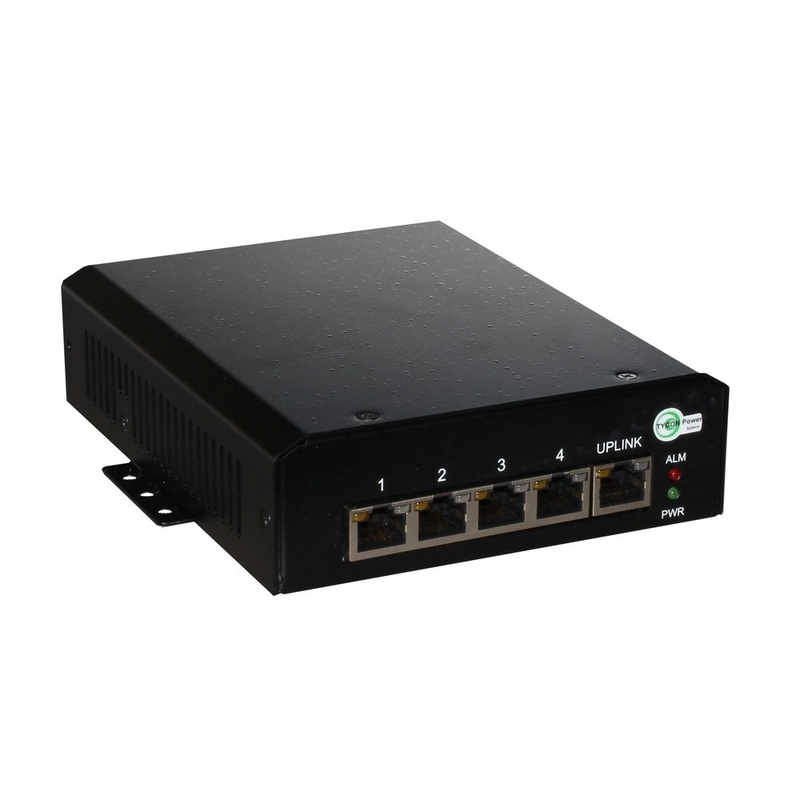

TP-SW5G-D-BT

• Power 4 802.3af/at devices from an 802.3bt (70W) PoE Input
• Power 4 802.3bt (up to 90W) from a wire terminal input
• Remote or Local Power for Cameras and Wireless Radios
• Also Functions as Ethernet/PoE repeater

The TP-SW5G-D-BT Power over Ethernet (PoE) 5 Port Gigabit switch offered by Tycon® is a fully automatic high

speed, high power, Layer 2 Ethernet switch with one 802.3bt PoE input and four 802.3bt PoE outputs. Ports 1-4 are

802.3af/at/bt compatible with up to 90W PoE Out per port utilizing 2 or 4 pairs for power. The Uplink Port 5, is 802.3bt

compatible so the switch can accept up to 70W PoE on 4 pairs to power the switch and connected devices remotely

over CAT5 or higher Ethernet Cable. The Ethernet spec supports distances up to 100m (328ft). By using as a

repeater, 200m total Ethernet distance is realistic.

The switch can accept power via two different interfaces: Wire Terminal Connector (10A, approx 500W Max) or via

802.3bt PoE input to Uplink Port 5 (70W Max). Two different power inputs can be used for redundancy. The higher

voltage takes priority.

The RJ45 connectors are shielded and grounded to the common “FG” (Frame Ground) connection. The units have

15kV surge protection on all Ethernet wires and are conformal coated for moisture protection. They have a wide

operating temperature range for outdoor and industrial applications.
